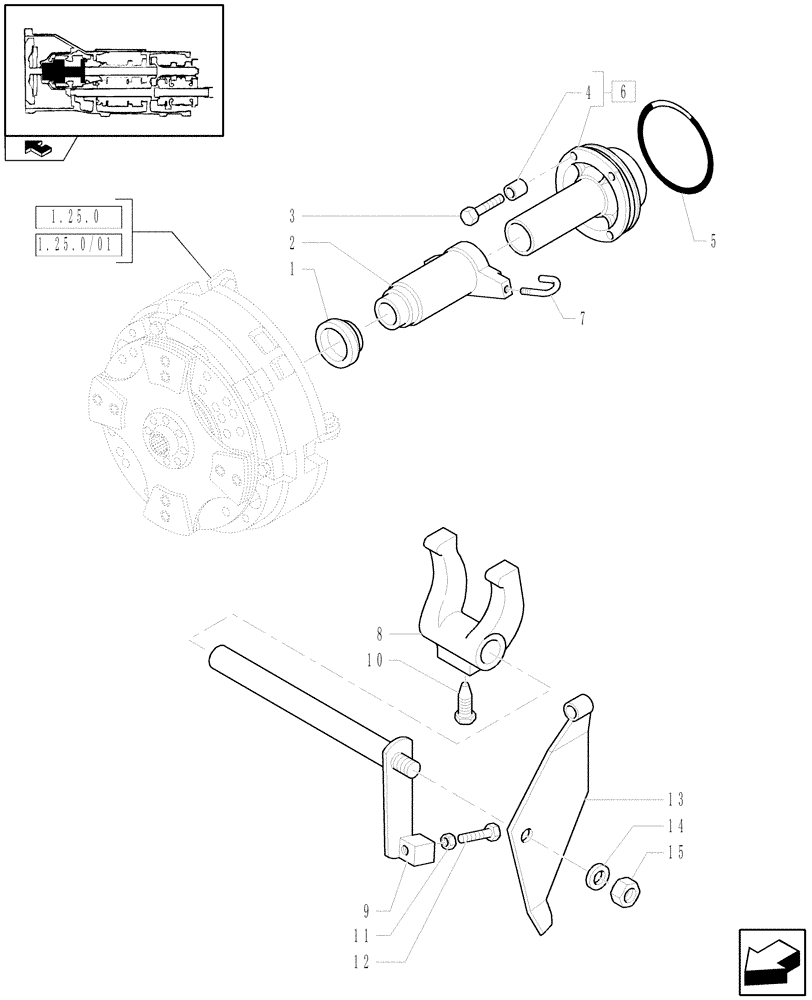

Запчасти Case IH FARMALL 105N (1.26.2[01]) - CLUTCH CONTROLS, CLUTCH FORK (03) - TRANSMISSION

1

87541562

THRUST BEARING,50 mm ID x 90.5 mm OD x 22 mm

1шт.

2

84487337

SLEEVE

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

5168157

BUSHING,8.5mm ID x 10.7mm OD x 5.5mm L

2шт.

5

14462180

O-RING,152.1mm ID x 2.62" Width

1шт.

6

5171606

SLEEVE

ASSY, Incl 4

1шт.

7

44011615

SPRING,15mm, Free Length

2шт.

8

5172487

YOKE,M16 x 1.5

1шт.

9

5171005

LEVER

1шт.

10

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16 x 1.5 x 32

1шт.

11

10791011

THIN NUT,Thin, M10 x 1.25, Cl 04

1шт.

12

15232024

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8, Full Thd

1шт.

13

5170984

LEVER

1шт.

14

11191574

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

1шт.

15

10790921

THIN NUT,Thin, M16 x 1.5, Cl 05

2шт.
