Запчасти Case IH FARMALL 105N (1.21.0[02]) - LOWER COVER AND SIDE COVERS FOR REAR TRANSMISSION BOX (03) - TRANSMISSION

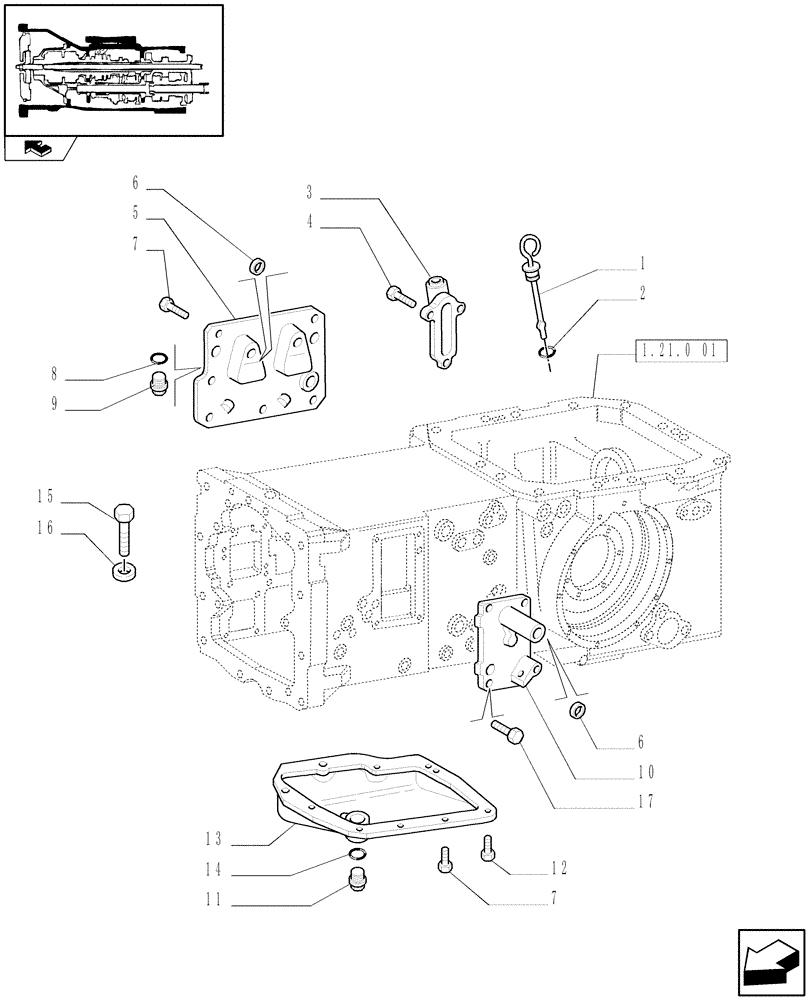

Схема запчастей Case IH FARMALL 105N - (1.21.0[02]) - LOWER COVER AND SIDE COVERS FOR REAR TRANSMISSION BOX (03) - TRANSMISSION
15
17
6
9
14
4
11
6
12
10
7
13
8
5
3
7
16
1
1.21.0 01
home
2

Артикул

Название

Примечание

Количество

1

5182954

DIPSTICK,165mm L

1шт.

2

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

2шт.

3

5177062

NECK FILLER

1шт.

4

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

5

87747943

COVER

ASSY, Incl 6, 8, 9

1шт.

6

5168241

SEAL,22mm ID x 32mm OD x 9mm Thk

22 x 32 x 8

3шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

, Serial Range: -`0

1шт.

QTY 5 for 65V, 75V, 85V, 95V Models; QTY 14 for 75N, 85N, 95N Models

1шт.

8

10261160

SEALING WASHER,M14.2 x 18 x 1.5, Copper

4шт.

8

4858609

WASHER,Brass

, Serial Range: -`0

2шт.

2WD Standard Steering for Mechanical Transmission, VAR.335280-339280,4WD Standard Steering for 32 X 16 Splitter Gearbox, VAR.333400

1шт.

9

10300714

PLUG,M16 x 1.5 x 14

2шт.

10

5178512

COVER

ASSY, Incl 6, 17

1шт.

10

5168149

COVER

ASSY, Incl 6, 17, Serial Range: -`0

1шт.

2WD Standard Steering for Mechanical Transmission, VAR.335280-339280,4WD Standard Steering for 32 X 16 Splitter Gearbox, VAR.333400

1шт.

11

5151213

PLUG,M35 x 1.5

M35 x 1.5, 75N, 85N, 95N

1шт.

12

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2WD

1шт.

13

5172917

COVER

75N, 85N, 95N

1шт.

14

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.

15

11227931

BOLT,Hex, M10 x 1.25 x 28mm, Cl 10.9, Full Thd

12шт.

16

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

12шт.

17

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

75N, 85N, 95N

1шт.

Выбрано товаров: 22
