(83.00[05]) - DRIVE WHEELS

Запчасти Case IH FARMALL 105N (83.00[05]) - DRIVE WHEELS (11) - WHEELS/TRACKS

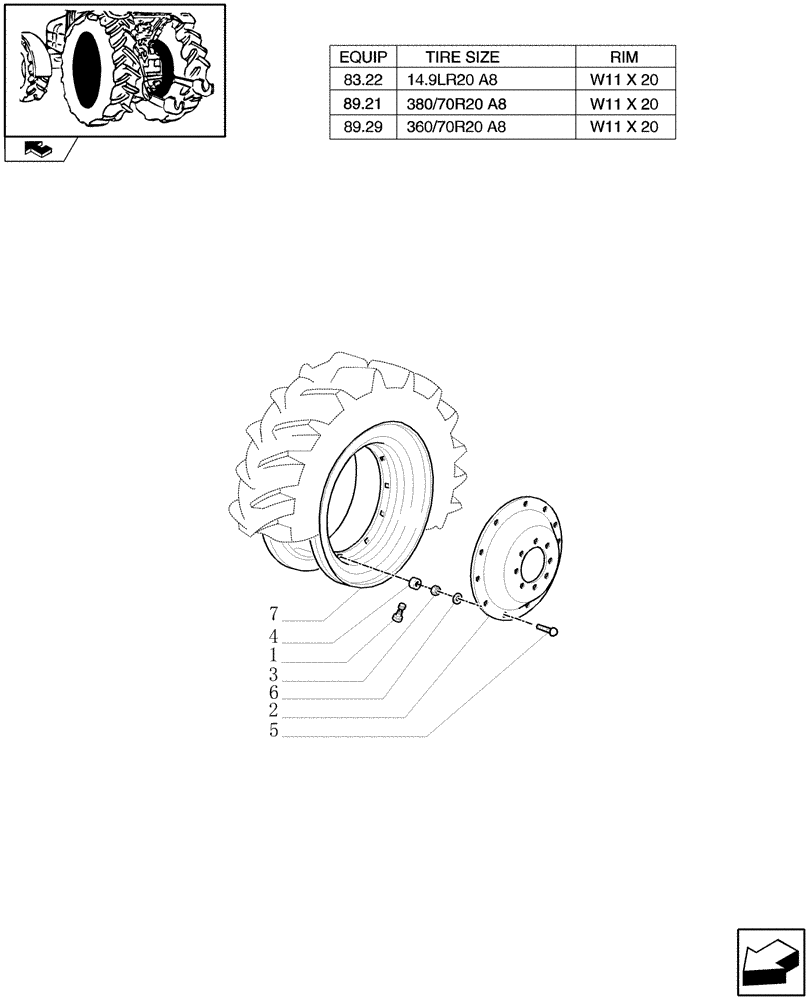

Схема запчастей Case IH FARMALL 105N - (83.00[05]) - DRIVE WHEELS (11) - WHEELS/TRACKS
2
7
3
4
home
1
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87323751

PNEUMATIC VALVE

2шт.

2

84156131

WHEEL DISC,410mm Dia, 16 Bolts, Case Silver

1шт.

3

10790524

NUT,M16 x 1.5

8шт.

4

87599873

SPACER,16.6mm ID x 32mm OD x 19mm L

8шт.

5

87599872

SCREW,M16 x 1 x 65mm

8шт.

6

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

8шт.

7

87492148

RIM,W11X20, 8 Bolts, CASE Silver

W11 x 20

2шт.

Выбрано товаров: 7
