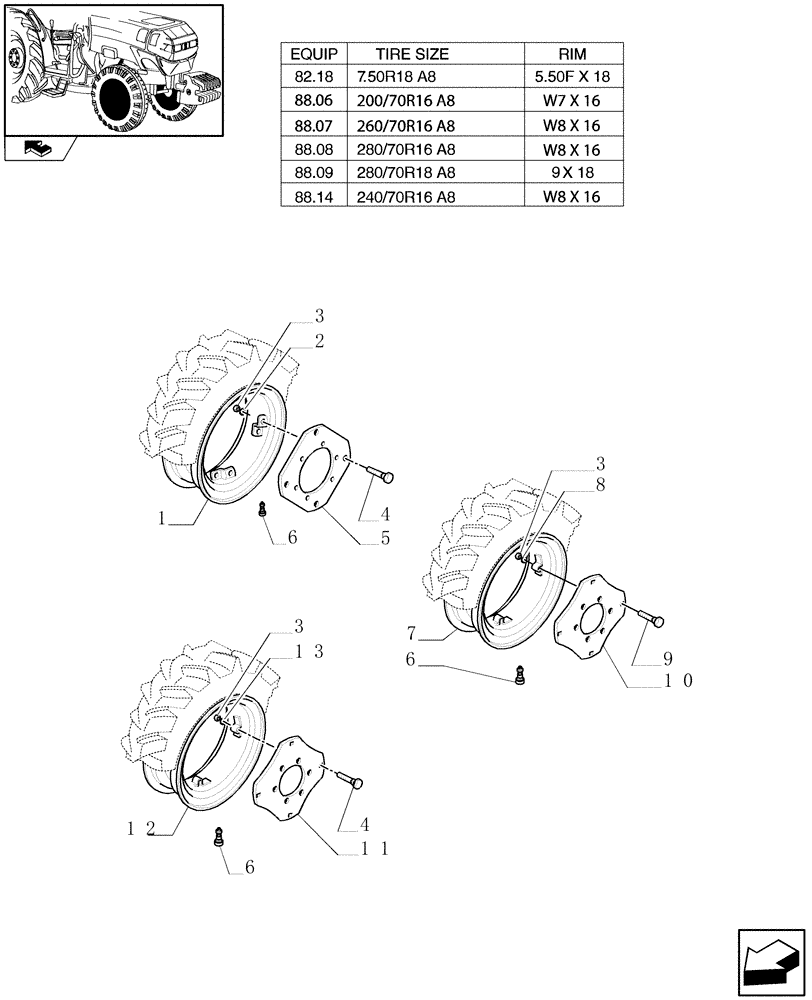

Запчасти Case IH FARMALL 105N (82.00[03]) - 4WD DRIVING WHEELS (11) - WHEELS/TRACKS

1

47136352

RIM,405.6mm Dia x 177.8mm W, 4 Bolts, CASE Silver

W7 x 16

2шт.

1

84134800

RIM,405.6mm Dia x 203mm W, 4 Bolts, CASE Silver

W8 x 16

2шт.

2

5186568

WASHER,16.3mm ID x 31.5mm OD x 2.5mm Thk

8шт.

Equip.88.07, 88.08, 88.14

1шт.

3

10790524

NUT,M16 x 1.5

8шт.

4

4959003

BOLT,M16 x 1.5 x 40mm, CL 10.9

Carriage, M16 x 1.5 x 38

8шт.

5

47136351

WHEEL DISC,309mm Dia, 10 Bolts

2шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

47136443

RIM,462mm Dia x 139.7mm W, 4 Bolts, CASE Silver

5.50F x 18

2шт.

8

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6 x 33 x 6

8шт.

Equip.82.18

1шт.

9

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

8шт.

10

47136347

WHEEL DISC,349.5mm Dia, 10 Bolts, Case Silver

2шт.

11

47136448

WHEEL DISC,337mm Dia, 10 Bolts, Case Silver

2шт.

12

47130980

RIM,462mm Dia x 228.6mm W, 4 Bolts, CASE Silver

9 x 18

2шт.

13

10730921

WASHER

8шт.

Equip.88.06, 88.09

1шт.
