Запчасти Case IH FARMALL 105N (1.92.94[05]) - CAB - HEATING SYSTEM - PIPES (10) - OPERATORS PLATFORM/CAB

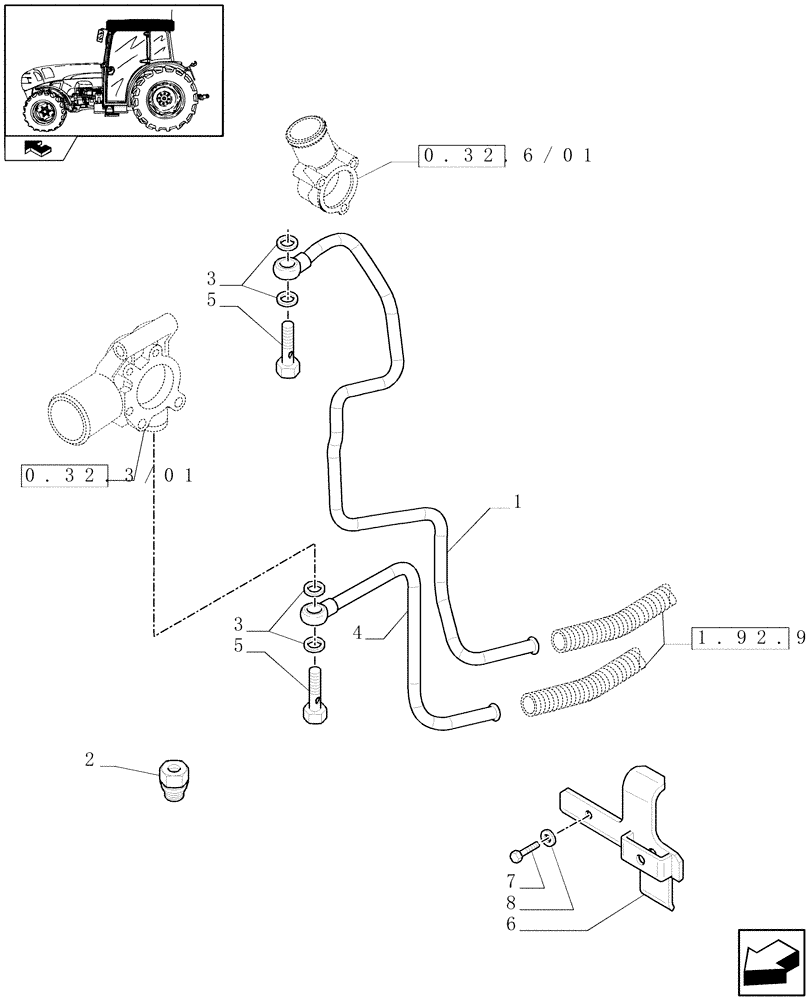

Схема запчастей Case IH FARMALL 105N - (1.92.94[05]) - CAB - HEATING SYSTEM - PIPES (10) - OPERATORS PLATFORM/CAB
home
2
5
3
3
1.92.94 03
0.32.6/01
0.32.3/01
7
4
6
1
8
5

Артикул

Название

Примечание

Количество

1

87719864

RIGID TUBE

Delivery

1шт.

2

87311071

ADAPTER

1шт.

3

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

4

87719865

RIGID TUBE

Return

1шт.

5

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5 x 34

2шт.

6

87609358

BRACKET

1шт.

7

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

8

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

Выбрано товаров: 8
