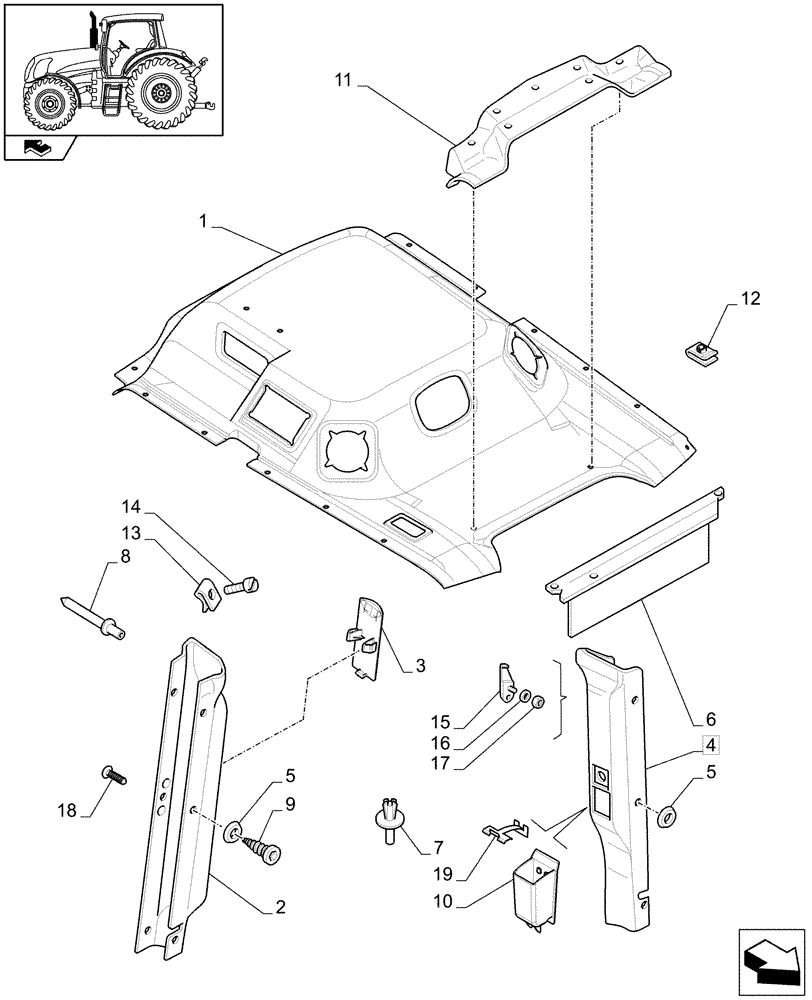

Запчасти Case IH FARMALL 105N (1.92.88/01[06]) - CAB, COVERINGS (10) - OPERATORS PLATFORM/CAB

1

84152483

SOFT TRIM

1шт.

2

84154065

COVER

RH

1шт.

3

84592837

LID

Fuse Cover

1шт.

4

47123853

SOFT TRIM

LH, ASSY, Incl 10, 19

1шт.

5

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

9шт.

6

44911825

SUN CURTAIN

1шт.

7

5162852

RIVET,7.3mm OD x 12mm L

12 mm

1шт.

8

5122484

RIVET

2шт.

9

12670407

SELF-TAP SCREW,Csk Hd, M3.5 x 18mm

2шт.

10

5199950

ASH TRAY

1шт.

11

87303102

COVER

Front

1шт.

12

87326498

SPRING,29.2mm L x 12mm W

2шт.

13

14189976

NUT,J, #6

5шт.

14

15693507

SCREW,Over Head, M4.8 x 1.6 x 22mm

7шт.

14

15688507

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 22mm

2шт.

15

5178468

COAT HOOK

1шт.

16

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

17

10794014

NUT,M4, Cl 8

1шт.

18

83994150

PLUG,4.5-5.7mm OD

3шт.

19

5196907

SPRING,33.5mm L x 15mm W x 0.5mm L

1шт.
