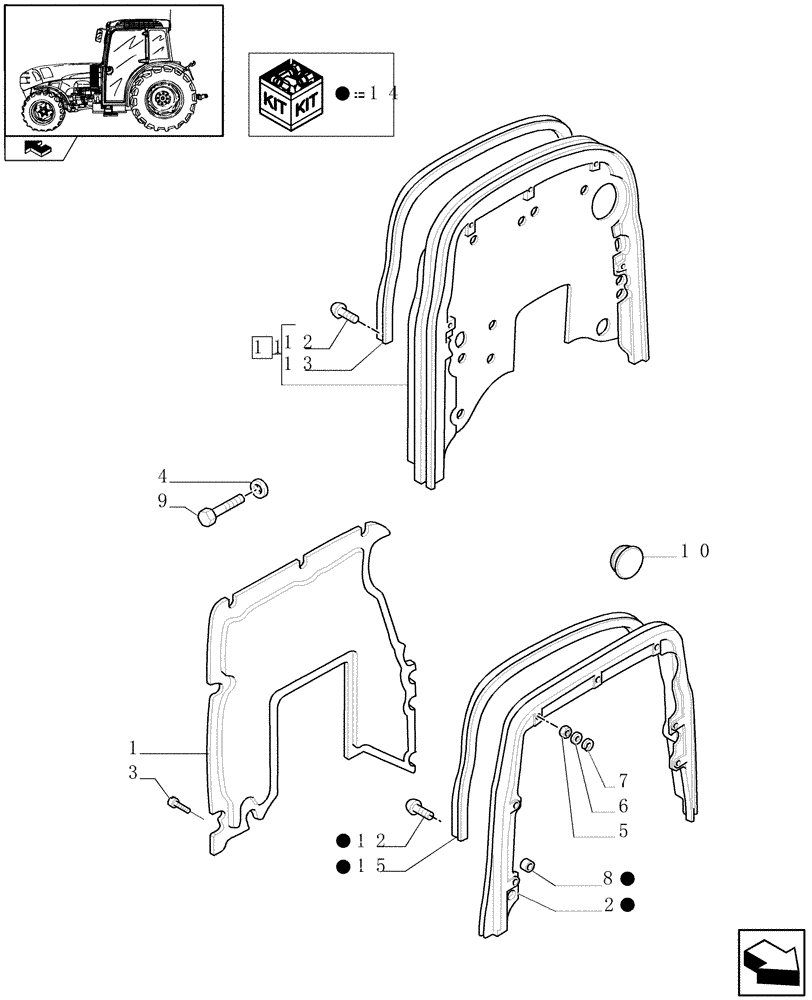

Запчасти Case IH FARMALL 105N (1.92.88[02]) - REAR HOOD COVERING AND HEAT INSULATION - W/CAB (10) - OPERATORS PLATFORM/CAB

1

87578012

INSULATOR

1шт.

2

87635886

SEAL

1шт.

3

14778914

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

2шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

4

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

10шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

5шт.

6

10516474

LOCK WASHER

M6

5шт.

7

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

5шт.

8

5176859

BUSHING,7mm ID x 11mm OD x 10mm L

7шт.

9

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

6шт.

10

14507687

PLUG,20mm ID

D=20

3шт.

11

5192008

SOFT TRIM

ASSY, Incl 12, 13

1шт.

12

15901601

SCREW,M4 x 16mm

2шт.

13

5189494

SEAL

1шт.

14

84161706

GASKET

ASSY, Incl 2, 8, 12, 15

1шт.

15

87525754

SEAL

1шт.
