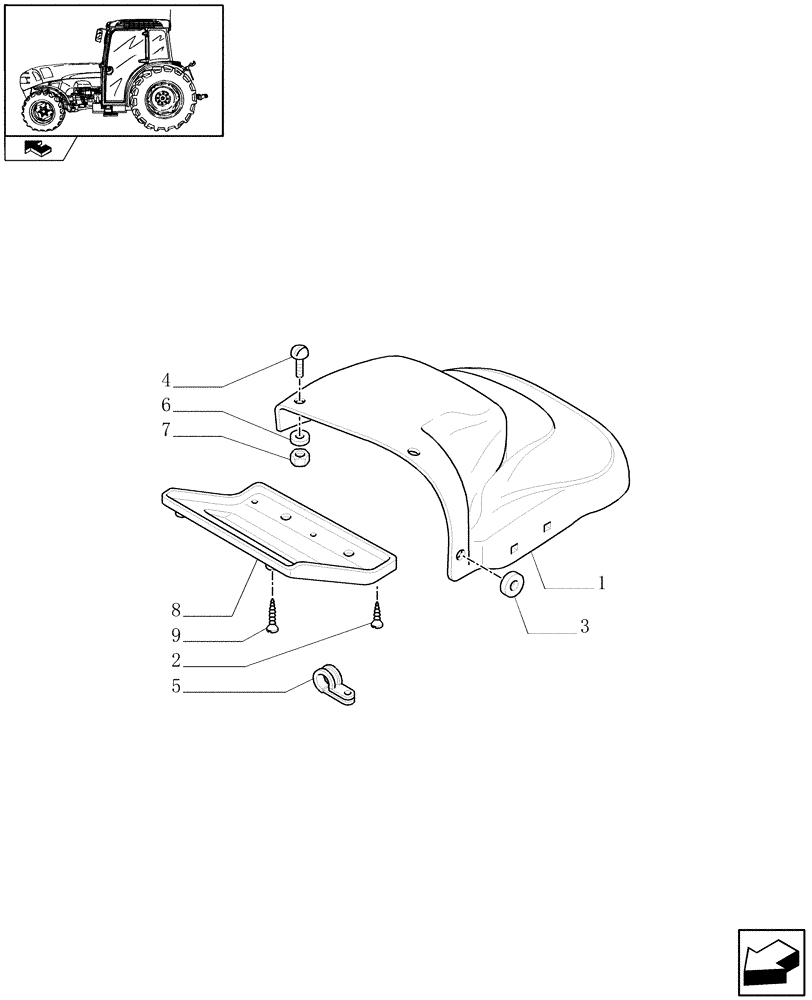

Запчасти Case IH FARMALL 105N (1.92.87/04) - REAR MUDGUARDS (10) - OPERATORS PLATFORM/CAB

1

5188510

GUARD

LH

1шт.

1

5188509

GUARD

RH

1шт.

2

15901475

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 9.50mm, SST

6шт.

3

10399180

RING,12mm ID x 24mm OD x 11mm Thk

2шт.

4

14781911

SCREW,Cross Rec Cheese Hd, M8 x 20mm, Cl 5.8

6шт.

5

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

2шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

12625224

LOCK WASHER,8.15mm ID x 20mm OD x 1mm Thk

6шт.

7

16100821

NUT,M8, Cl 10

6шт.

8

5176386

COVER

2шт.

9

15901675

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 16mm, SST

4шт.
