Запчасти Case IH FARMALL 105N (1.92.85/01) - SEAT - W/CAB (VAR.335859-336859-337859-338859-339859) (10) - OPERATORS PLATFORM/CAB

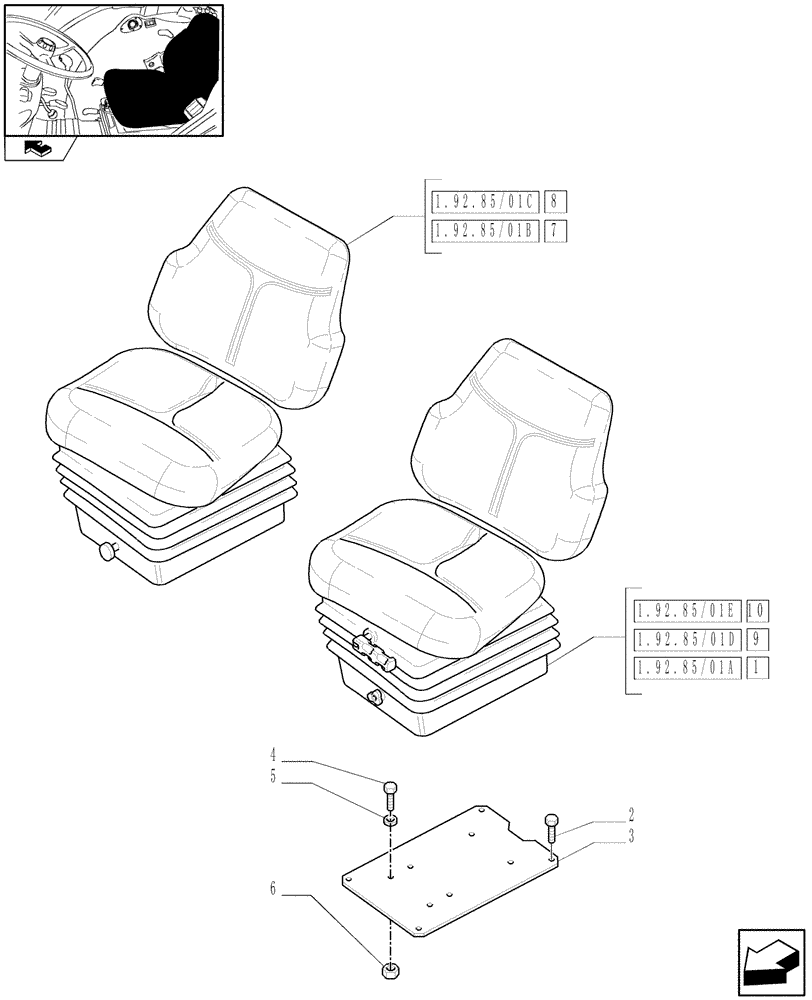

Схема запчастей Case IH FARMALL 105N - (1.92.85/01) - SEAT - W/CAB (VAR.335859-336859-337859-338859-339859) (10) - OPERATORS PLATFORM/CAB
1.92.85/01e
6
home
4
9
1.92.85/01c
1
2
8
5
1.92.85/01b
1.92.85/01d
7
3
1.92.85/01a
10

Артикул

Название

Примечание

Количество

1

87743887

DRIVER SEAT

ASSY, Serial Range: -`0

1шт.

Fabric Cover Seat with Safety Switch and Belts, VAR.335859

1шт.

2

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

M8 x 20

4шт.

3

5196614

PLATE

1шт.

4

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8 x 1.25 x 22

2шт.

5

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8 x 16 x 1.9

4шт.

6

5182253

NUT

M8 x 1.25 x 22

2шт.

7

87743894

DRIVER SEAT

ASSY, Serial Range: -`0

1шт.

Fabric Cover Seat with Air Suspension and Safety Switch, VAR.338859

1шт.

8

87743893

DRIVER SEAT

ASSY, Serial Range: -`0

1шт.

Fabric Cover Seat with Air Suspension, Belts and Safety Switch, VAR.337859

1шт.

9

87743885

DRIVER SEAT

ASSY, Serial Range: -`0

1шт.

Fabric Cover Seat with Belts, VAR.336859

1шт.

10

87743883

DRIVER SEAT

ASSY, Serial Range: -`0

1шт.

Fabric Cover Seat, VAR.339859

1шт.

Выбрано товаров: 15
