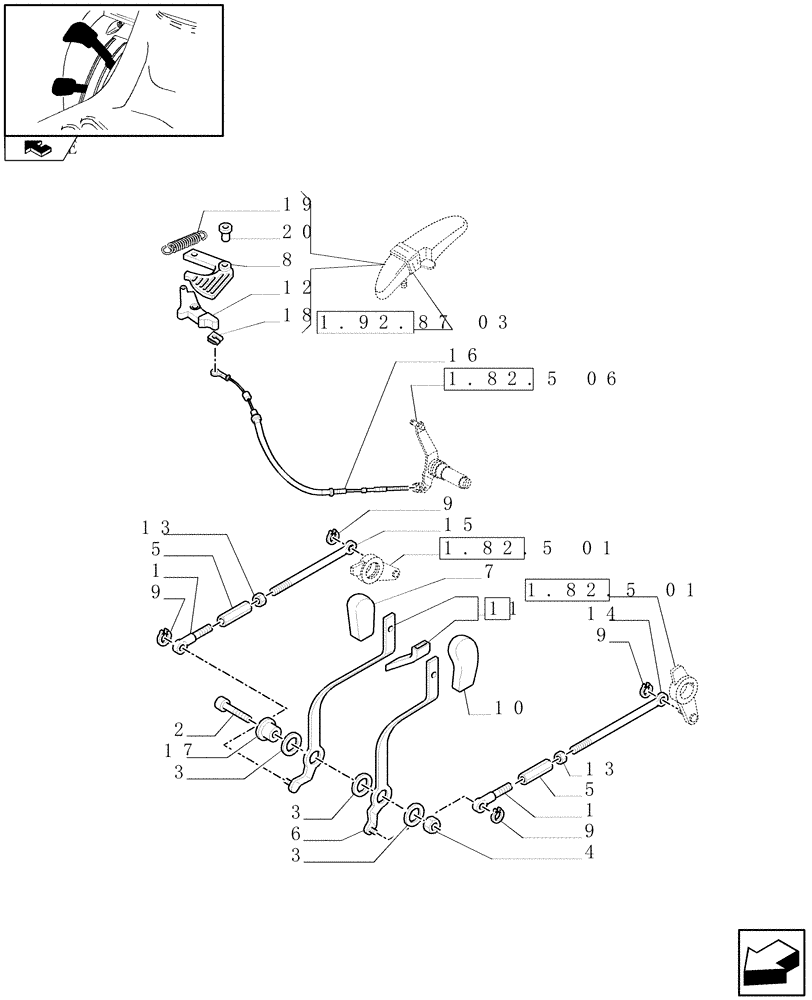

Запчасти Case IH FARMALL 105N (1.92.82[01]) - HYDRAULIC LIFT OUTER CONTROLS, "LIFT-O-MATIC" - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5188164

EYE,Tie Rod

M6

2шт.

2

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

4

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

5

10091011

TURNBUCKLE,Adjusting, M6 x 1 x 70mm

2шт.

6

47135310

LEVER

Draught

1шт.

7

5178867

KNOB

Black

1шт.

8

47125450

LEVER

1шт.

9

11087976

CIRCLIP,Ext., M8, BLO

4шт.

10

5189193

KNOB

Black

1шт.

11

47135318

LEVER

ASSY

1шт.

12

47125441

PUSH BUTTON

1шт.

13

10725914

LOCK NUT,M6 x 1, Cl 04

2шт.

14

5188165

TIE-ROD,M6 x 361mm L

Draught, 65V, 75V, 85V, 95V

1шт.

14

5188167

TIE-ROD,361mm L

Draught, 75N, 85N, 95N

1шт.

15

5188166

TIE-ROD,359mm L

Position, 65V, 75V, 85V, 95V

1шт.

15

5188168

TIE-ROD,359mm L

Position, 75N, 85N, 95N

1шт.

16

47129209

CABLE

1шт.

17

5188307

HUB

1шт.

18

11065374

SNAP RING,M5, Ext

1шт.

19

47125931

SPRING,12mm OD x 36.6mm L

1шт.

20

44906008

BUSHING,6.25mm ID x 16mm OD x 16.5mm L

3шт.
