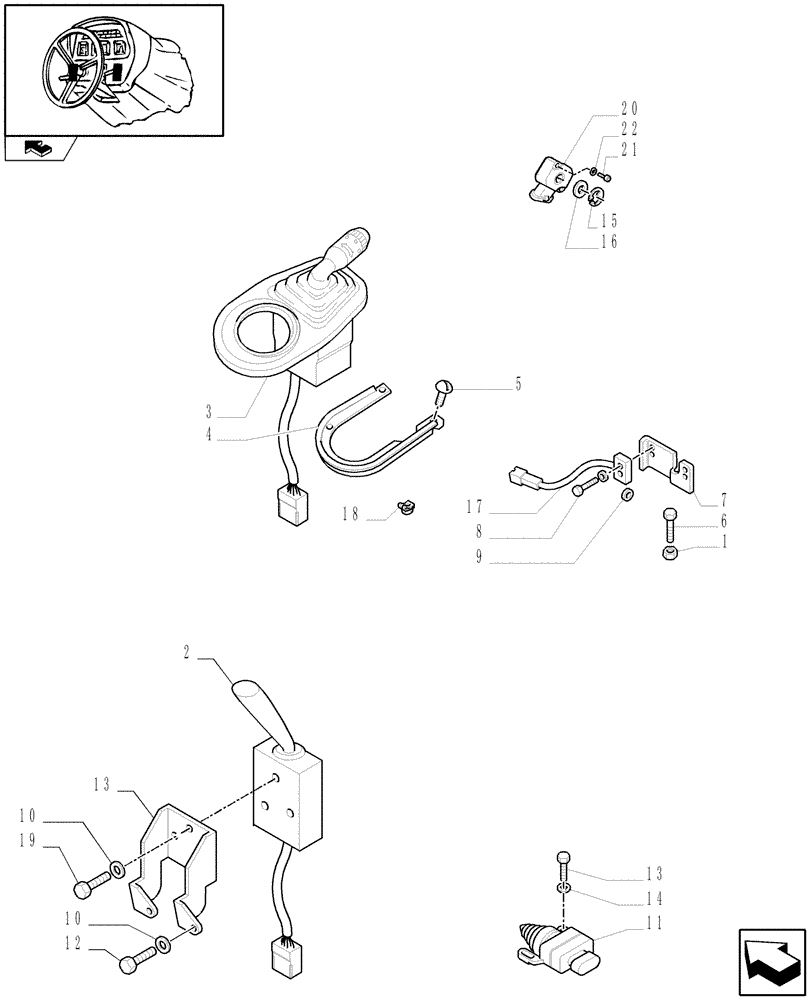

Запчасти Case IH FARMALL 105N (1.92.74/02) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - CONTROLS (VAR.330275-331275 / 743510; VAR.330273) (10) - OPERATORS PLATFORM/CAB

1

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

2

87536705

LEVER

Shuttle Lever

1шт.

3

87677191

LIGHT SWITCH

, Serial Range: -`0

1шт.

Lights Control Switch

1шт.

4

5173820

RUBBER STRIP

1шт.

5

15663401

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 22mm

3шт.

5

15643904

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

6

14441027

SCREW,Flat Csk Hd, M5 x 30mm, Cl 8.8, Full Thd

M5 x 30

1шт.

7

87552777

BRACKET

1шт.

8

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

2шт.

8

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

2шт.

9

87566484

MAGNET

1шт.

10

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

5шт.

11

47137022

SWITCH

1шт.

12

14303424

HEX SOC SCREW,M4 x 25mm, Cl 8.8, Full Thd

2шт.

13

84153254

BRACKET

1шт.

14

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

15

11087874

CIRCLIP,M6

1шт.

16

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

17

87539616

HAND BRAKE

Hand Brake

1шт.

18

14372671

SPRING NUT,M4.2, U, 12.4mm long

5шт.

19

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

5шт.

20

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

21

14358724

HEX SOC SCREW,M5 x 35mm, Cl 8.8, Full Thd

2шт.

22

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.
