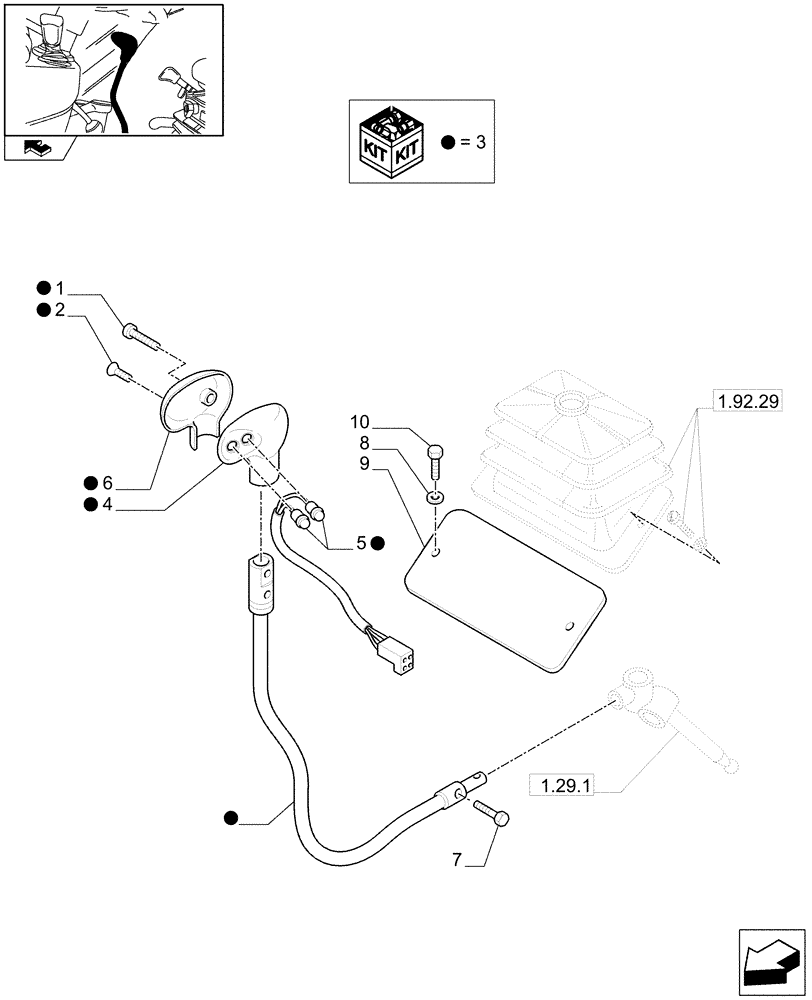

Запчасти Case IH FARMALL 105N (1.92.29/02[02A]) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - CONTROLS - W/CAB - BEGIN YR 26-JUN-2012 (VAR.330275-331275 / 743510) (10) - OPERATORS PLATFORM/CAB

1

13274877

SCREW,Phil Pan Hd, M5 x 30mm, SST

1шт.

2

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

1шт.

3

87471700

LEVER

ASSY, Incl 1, 2, 4-6

1шт.

4

87746285

KNOB

LH

1шт.

5

87398154

SWITCH

2шт.

6

5165394

KNOB

RH

1шт.

7

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12 x 1.25 x 28

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

9

5195262

PLATE

1шт.

10

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.
