Запчасти Case IH FARMALL 105N (1.90.7[02]) - FIRE EXTINGUISHER SUPPORT - L/CAB (10) - OPERATORS PLATFORM/CAB

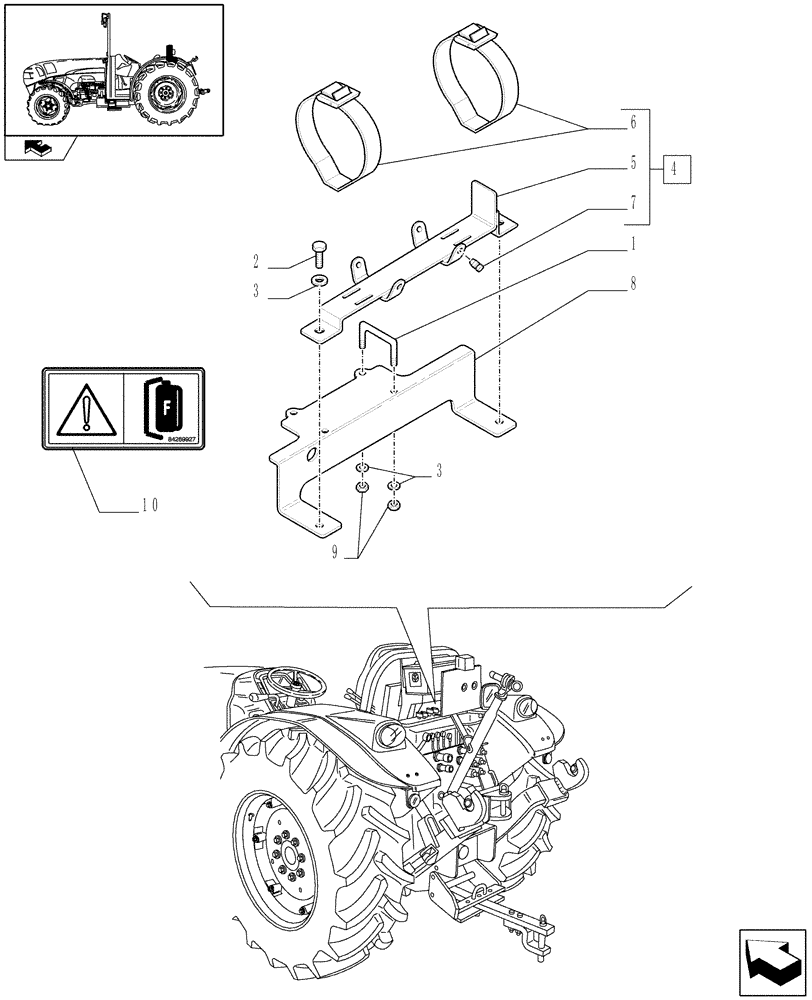

Схема запчастей Case IH FARMALL 105N - (1.90.7[02]) - FIRE EXTINGUISHER SUPPORT - L/CAB (10) - OPERATORS PLATFORM/CAB
9
1
3
5
4
home
3
7
2
6
10
8

Артикул

Название

Примечание

Количество

1

84282419

U-BOLT

2шт.

2

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

84280012

SUPPORT

ASSY, Incl 5-7

1шт.

5

84280775

BRACKET, SUPPORTING

1шт.

6

84277341

BRACKET

2шт.

7

14567080

FASTENER,Stud, Ribbed, 5.50mm x 4mm x 1mm, Plastic

2шт.

8

84298334

BRACKET, SUPPORTING

1шт.

9

16100814

NUT,M8, Cl 8, DAC

2шт.

10

84277297

WARNING DECAL

Estinguisher

1шт.

Выбрано товаров: 10
