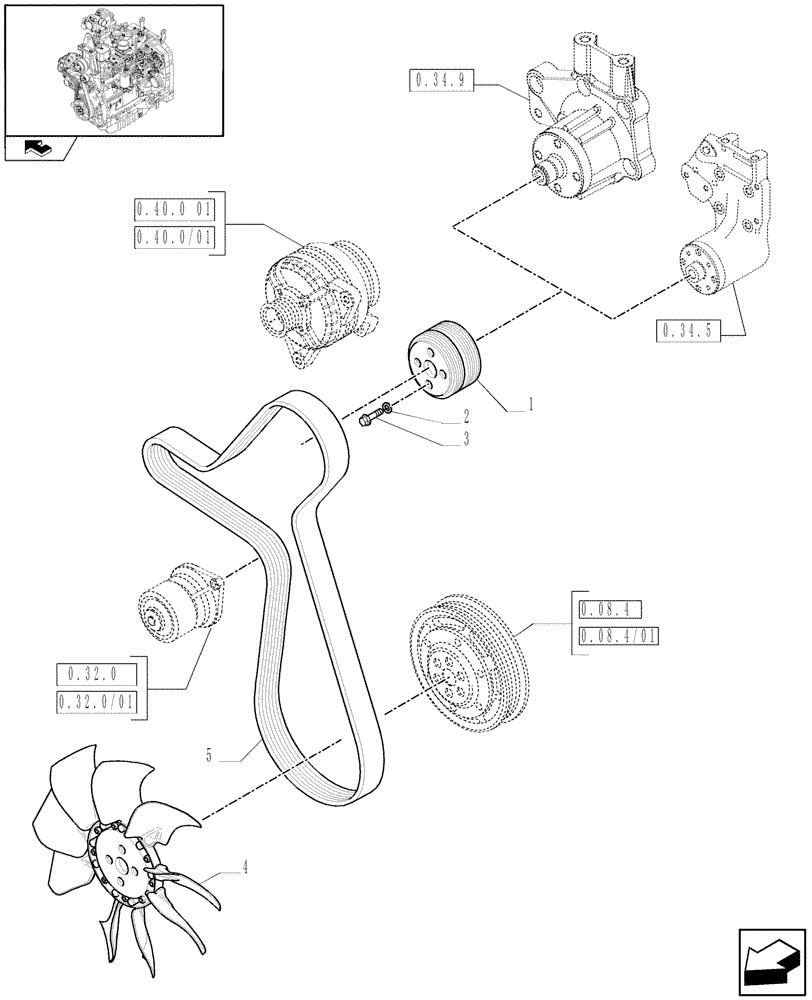

Запчасти Case IH FARMALL 105N (0.34.7) - PULLEY, FAN AND BELT (01) - ENGINE

1

87639094

PULLEY,132mm OD

D=132, 65V, 75V, 75N

1шт.

1

87692987

PULLEY,122mm OD

D=122, 85V, 85N

1шт.

1

87519554

PULLEY,122mm OD

D=122, 95V, 95N, 105V, 105N, W/CAB

1шт.

1

87519548

PULLEY,132mm OD

D=132,95V, 95N, L/CAB

1шт.

2

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

3

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

65V, 75V, 75N, 85V, 85N

4шт.

3

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

95V, 95N, 105V, 105N

4шт.

4

87542809

FAN,10 Blades, 450mm OD

1шт.

4

84467075

FAN,10 Blades, 480mm OD

105V, 105N, W/CAB

1шт.

5

87705737

V-BELT,3.56 mm W x 1398.00 mm L, 8 Ribs

65V, 75V, 75N

1шт.

5

87472997

V-BELT,3.56 mm W x 1389.28 mm L, 8 Ribs

85V, 85N

1шт.

5

47135840

V-BELT,1367.00 mm L, 8 Ribs

95V, 95N, 105V, 105N, W/CAB

1шт.

5

47131754

V-BELT,28.48 mm W x 1381.00 mm L, 8 Ribs

95V, 95N, L/CAB

1шт.

6

87302310

HEX SOC SCREW,M10 x 1.5 x 80mm

105V, 105N, W/CAB

1шт.

6

11106124

BOLT,Hex, M10 x 22mm, Cl 8.8

105V, 105N, W/CAB

1шт.

7

11701711

NUT,Hex, M10, Cl 8, ZND

105V, 105N, W/CAB

1шт.
