(1.82.7/11[02]) - ELECTRONIC MID MOUNTED VALVES - DUST CAP AND SHIELD

Запчасти Case IH FARMALL 105N (1.82.7/11[02]) - ELECTRONIC MID MOUNTED VALVES - DUST CAP AND SHIELD (07) - HYDRAULIC SYSTEM

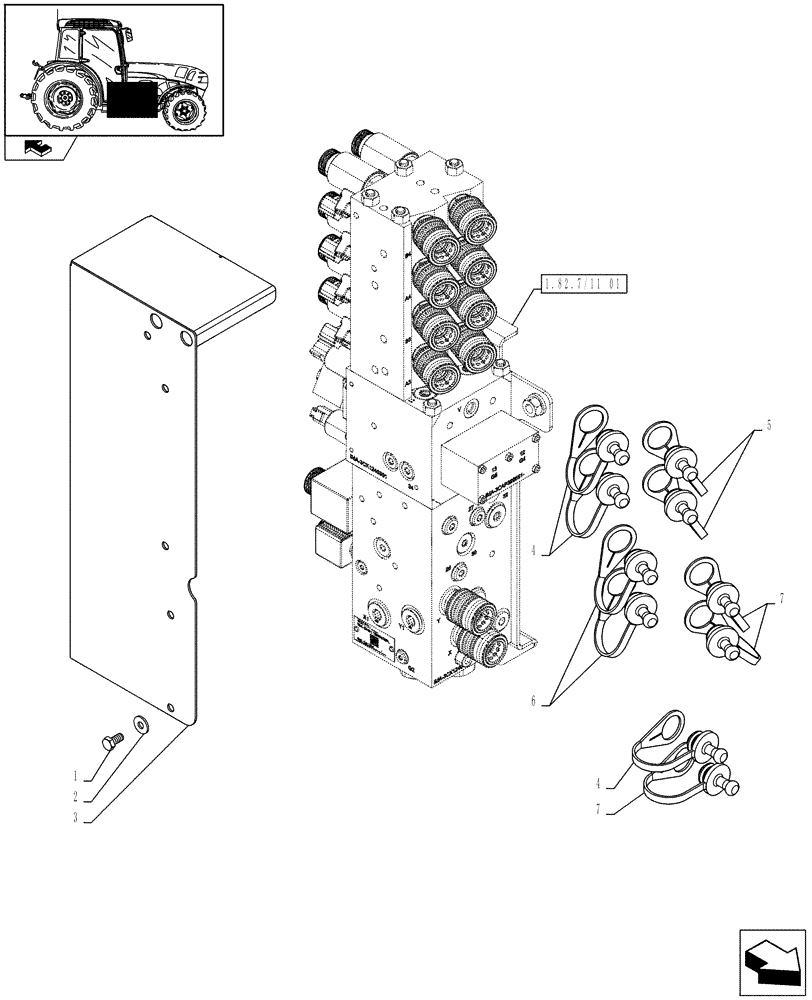

Схема запчастей Case IH FARMALL 105N - (1.82.7/11[02]) - ELECTRONIC MID MOUNTED VALVES - DUST CAP AND SHIELD (07) - HYDRAULIC SYSTEM
7
5
7
1
home
1.82.7/11 01
4
4
2
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

412555

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

5шт.

2

12646778

WASHER,8.15mm ID x 20mm OD x 2mm Thk

5шт.

3

84528001

SHIELD

1шт.

4

47133328

PLUG,24mm, Grey

Grey

3шт.

5

5179580

PLUG,24mm, Red

Red

2шт.

6

5179579

PLUG,24mm, Yellow

Yellow

2шт.

7

5186723

DUST CAP,24mm, Black

Black

3шт.
