Запчасти Case IH FARMALL 105N (1.82.7/08) - LESS REAR REMOTES FOR EDC - REMOTE VALVES - W/CAB (VAR.338391 / 743528) (07) - HYDRAULIC SYSTEM

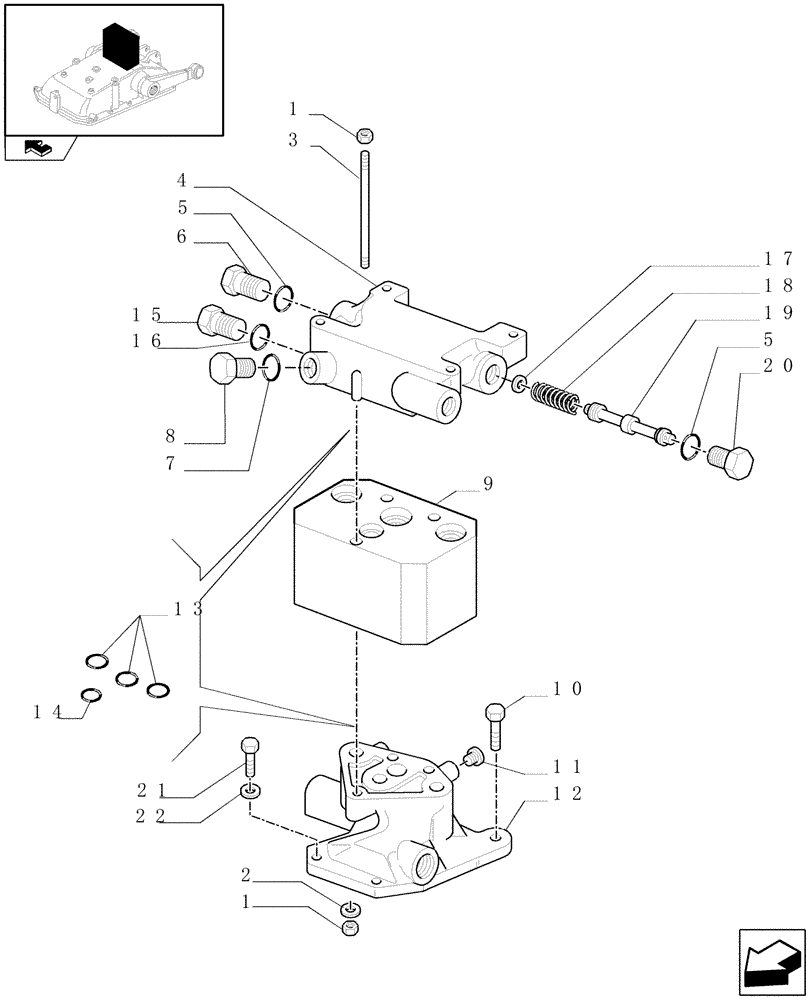

Схема запчастей Case IH FARMALL 105N - (1.82.7/08) - LESS REAR REMOTES FOR EDC - REMOTE VALVES - W/CAB (VAR.338391 / 743528) (07) - HYDRAULIC SYSTEM
13
9
14
5
4
6
16
2
21
7
17
10
11
1
5
15
20
18
home
19
22
8
12
1
3

Артикул

Название

Примечание

Количество

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

3

5150104

STUD,3/8" - 24 x 5"

3шт.

4

87374218

FLANGE

ASSY

1шт.

5

14438185

O-RING,24mm ID x 3mm

2шт.

6

5173857

PLUG,Hex, M27 x 2

1шт.

7

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

83957506

PLUG,3/4"

1шт.

9

87315508

SPACER

1шт.

10

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

11

10269601

PLUG,M16 x 1.5

1шт.

12

5176480

FLANGE

1шт.

13

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

19 x 3.50 x 3

9шт.

14

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

D=18.72

3шт.

15

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

16

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

17

5167122

VALVE

1шт.

18

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

19

83999793

HYDRAULIC VALVE

1шт.

20

5167123

PLUG,7/16" - 20

1шт.

21

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

22

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

Выбрано товаров: 22
