(1.82.7/06[04]) - 3 REAR REMOTE VALVES WITH DOUBLE FLOW DIVIDER - PIPES (VAR.331391-334391 / 743527)

Запчасти Case IH FARMALL 105N (1.82.7/06[04]) - 3 REAR REMOTE VALVES WITH DOUBLE FLOW DIVIDER - PIPES (VAR.331391-334391 / 743527) (07) - HYDRAULIC SYSTEM

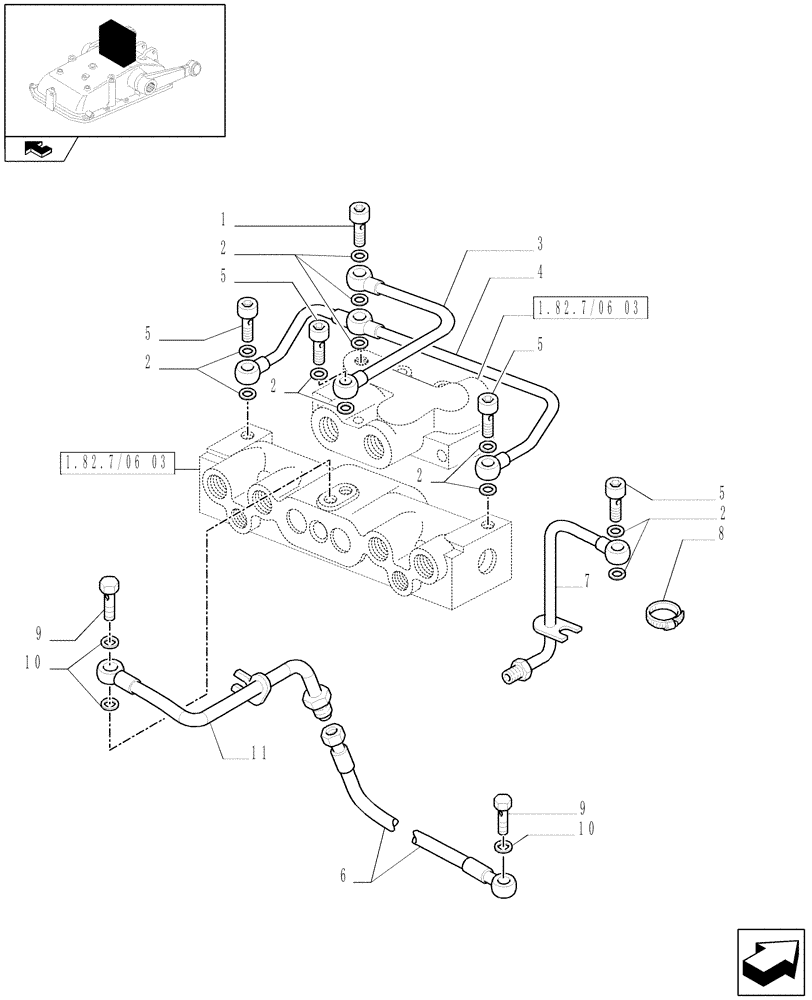

Схема запчастей Case IH FARMALL 105N - (1.82.7/06[04]) - 3 REAR REMOTE VALVES WITH DOUBLE FLOW DIVIDER - PIPES (VAR.331391-334391 / 743527) (07) - HYDRAULIC SYSTEM
9
2
3
1.82.7/06 03
7
1.82.7/06 03
6
4
10
8
2
home
2
1
2
9
11
5
10
2
5
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5179757

BANJO BOLT

M8 x 1.25

1шт.

2

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

8шт.

3

5179545

RIGID TUBE

1шт.

4

84516608

RETURN PIPE

1шт.

5

5175070

BANJO BOLT,M8 x 1.25 x 24mm

M8 x 1.25

4шт.

6

47133401

FLEXIBLE HOSE,6mm ID x 1110mm L

, Serial Range: -`0

1шт.

Front Pilot Hose

1шт.

7

47131636

RIGID TUBE

Rear Pilot

1шт.

8

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

1шт.

9

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

10

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12 x 18 x 1.5

4шт.

11

87731823

RIGID TUBE

1шт.
