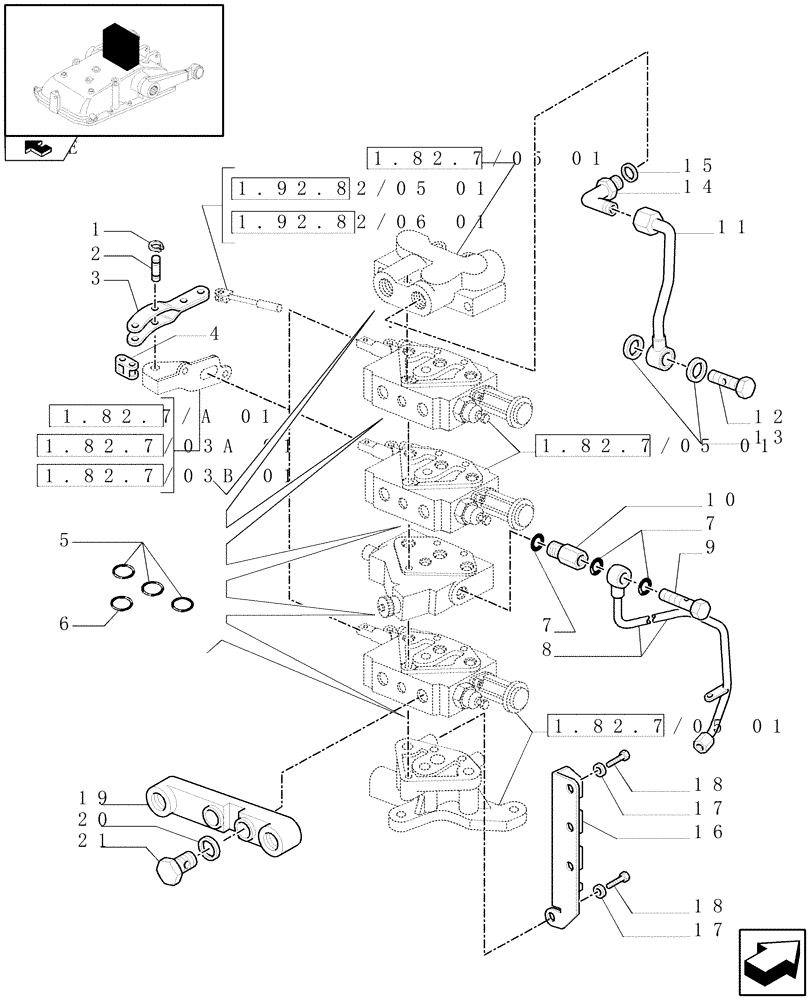

Запчасти Case IH FARMALL 105N (1.82.7/05[02]) - 3 REM. VALVES FOR MECHANICAL LIFTER W/HYDRAULIC DIVIDER - PIPES AND RINGS (VAR.330391-332391-333391-335391 / 743526) (07) - HYDRAULIC SYSTEM

1

11087776

CIRCLIP,Ext., M6, BLO

3шт.

2

5172456

PIN,6mm OD x 20mm L

3шт.

3

5178877

CLEVIS

3шт.

4

5116896

LINK,19.05mm Pitch

3шт.

5

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

19 x 3.50 x 3

15шт.

6

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

D=19.2

5шт.

7

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

3шт.

8

5186138

RIGID TUBE

1шт.

9

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.

10

5188525

REDUCER,M22 x 1.5 x M22 x 1.5

1шт.

11

5188499

RIGID TUBE

1шт.

12

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

13

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

14

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

16

5179944

CONSOLE

1шт.

17

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

18

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

19

5185533

HYD CONNECTOR

1шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

21

5168481

BANJO BOLT,M18 x 1.5 x 38mm

2шт.
