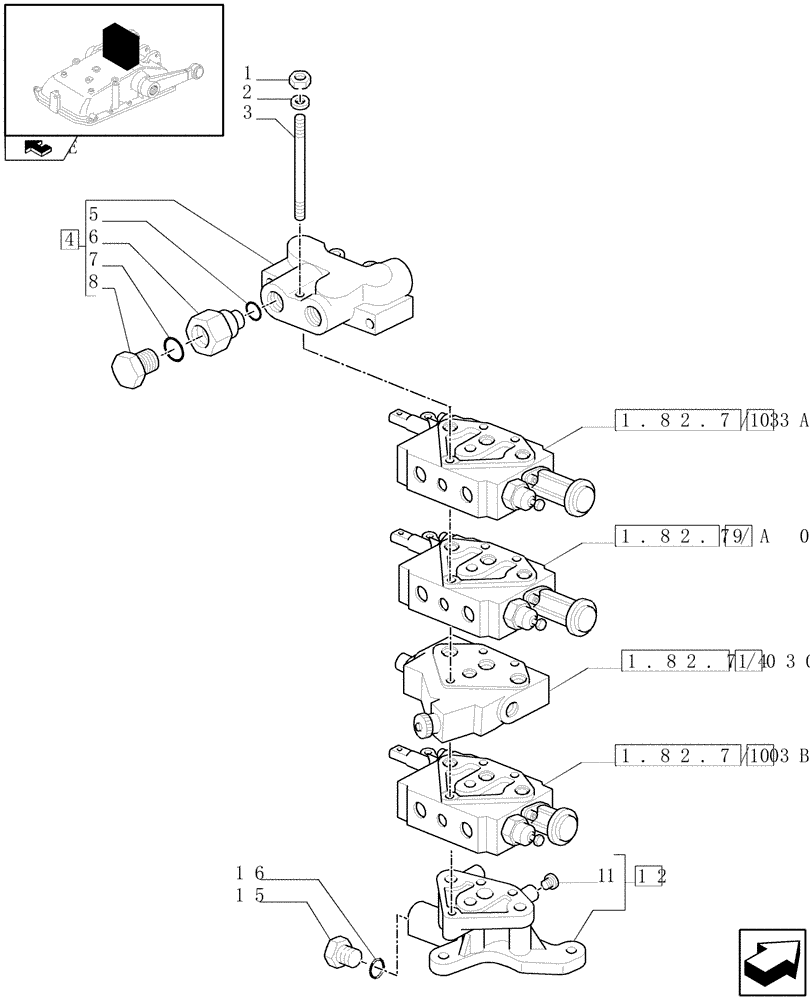

Запчасти Case IH FARMALL 105N (1.82.7/05[01]) - 3 REM. VALVES FOR MECHANICAL LIFTER W/HYDRAULIC DIVIDER - FLANGE AND SIDE PANEL (VAR.330391-332391-333391-335391 / 743526) (07) - HYDRAULIC SYSTEM

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

3

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

4

87396829

CONTROL VALVE

ASSY

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

83957506

PLUG,3/4"

1шт.

9

87396877

CONTROL VALVE

ASSY

1шт.

S/D W/Autom.Kick-Out & Float

1шт.

10

87396881

CONTROL VALVE

ASSY

1шт.

S/D W/Autom.Kick-Out

1шт.

11

10269601

PLUG,M16 x 1.5

M16

1шт.

12

5176800

FLANGE

ASSY, Incl 11

1шт.

13

87396859

CONTROL VALVE

ASSY

1шт.

Simple Double Effect Distributor with Float

1шт.

14

87397107

CONTROL VALVE

1шт.

15

10305911

PLUG,M22 x 1.5 x 27

1шт.

16

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

1шт.
