(1.82.7/01[02]) - 2 REAR REMOTES FOR EDC - RELATED PARTS - W/CAB

Запчасти Case IH FARMALL 105N (1.82.7/01[02]) - 2 REAR REMOTES FOR EDC - RELATED PARTS - W/CAB (07) - HYDRAULIC SYSTEM

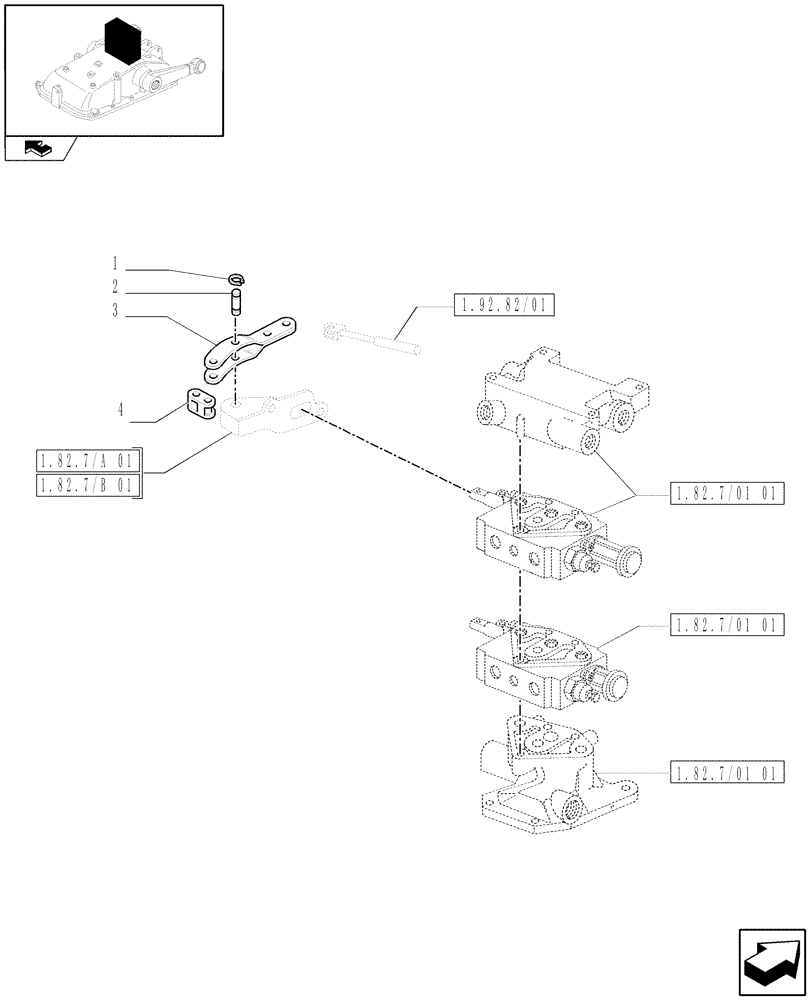

Схема запчастей Case IH FARMALL 105N - (1.82.7/01[02]) - 2 REAR REMOTES FOR EDC - RELATED PARTS - W/CAB (07) - HYDRAULIC SYSTEM
2
1.82.7/01 01
1.82.7/01 01
1.92.82/01
home
1.82.7/a 01
1.82.7/b 01
3
1.82.7/01 01
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

2шт.

2

5172456

PIN,6mm OD x 20mm L

2шт.

3

5178877

CLEVIS

2шт.

4

5116896

LINK,19.05mm Pitch

2шт.
