(1.82.0/01) - LIFTER, HOUSING AND COVERS (VAR.334565-334578 / 744833)

Запчасти Case IH FARMALL 105N (1.82.0/01) - LIFTER, HOUSING AND COVERS (VAR.334565-334578 / 744833) (07) - HYDRAULIC SYSTEM

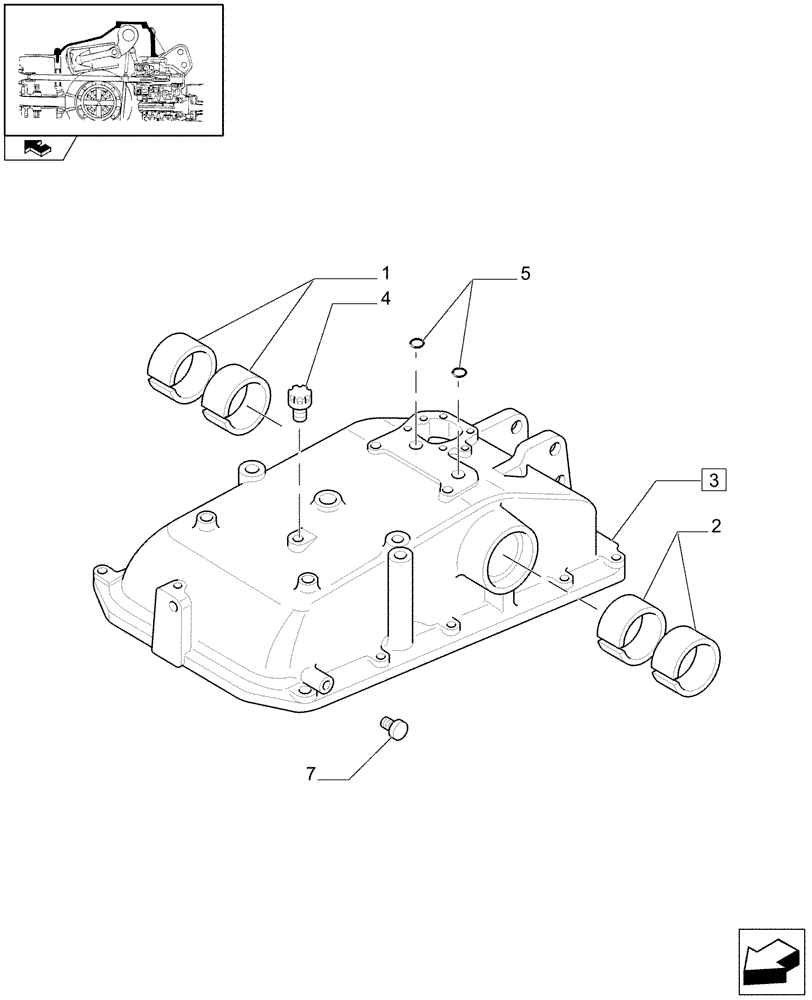

Схема запчастей Case IH FARMALL 105N - (1.82.0/01) - LIFTER, HOUSING AND COVERS (VAR.334565-334578 / 744833) (07) - HYDRAULIC SYSTEM
5
home
3
1
7
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5181871

BUSHING,47.98mm ID x 53.03mm OD x 35mm L

RH

2шт.

2

5181870

BUSHING,55.1mm ID x 60.03mm OD x 35mm L

LH

2шт.

3

87346203

BODY

ASSY, Incl 1, 2

1шт.

4

83925022

BREATHER,.375-18 NPT

1шт.

5

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.
