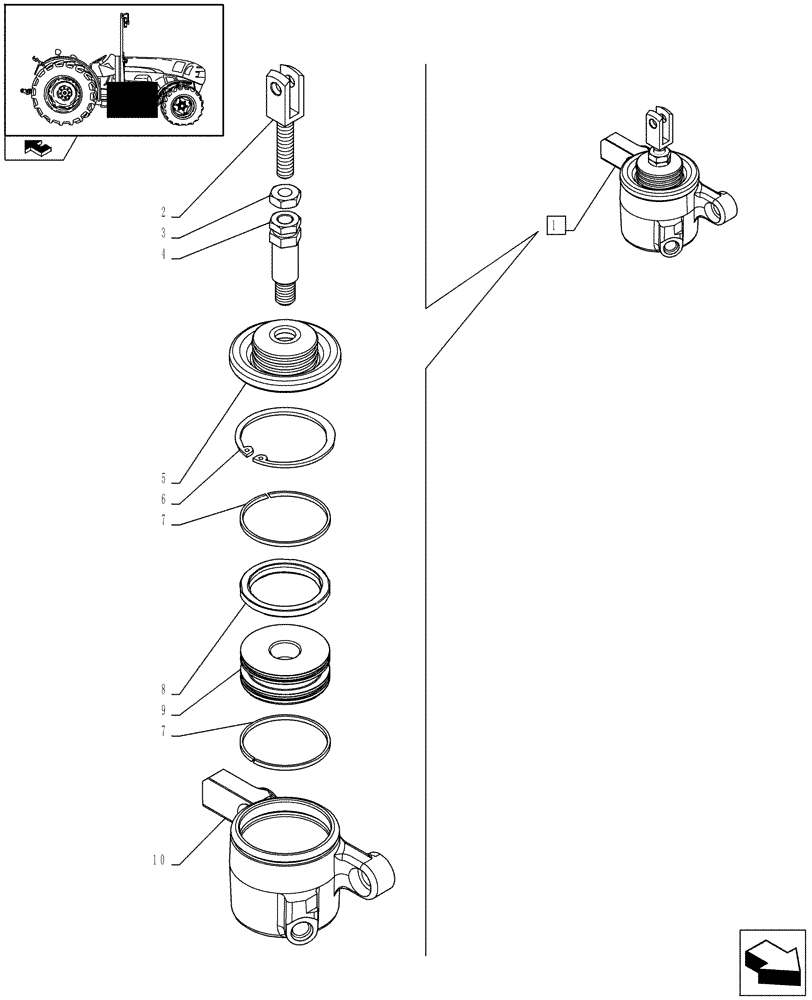

Запчасти Case IH FARMALL 105N (1.80.4/02[03]) - 2 MID MOUNT PIPES, 4 COUPLERS - PTO CLUTCH CONTROL ACTUATOR CYLINDER - BREAKDOWN - L/CAB (VAR.330119) (07) - HYDRAULIC SYSTEM

1

84342333

CYLINDER

ASSY, Incl 2-10

1шт.

2

5183675

CLEVIS,M10 x 1.25mm

1шт.

3

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

1шт.

4

84515276

STUD,M10 x 1.25 x 63mm L

1шт.

5

5183723

BELLOWS

1шт.

6

84163829

RING,58mm, PHC

1шт.

7

5185835

RING,51.8mm ID x 55mm OD x 2.5mm Thk

2шт.

8

5185834

SEAL,45mm ID x 55mm OD x 7mm Thk

1шт.

9

84342331

PISTON,OD 54.5mm

1шт.

10

84342332

VALVE

1шт.
