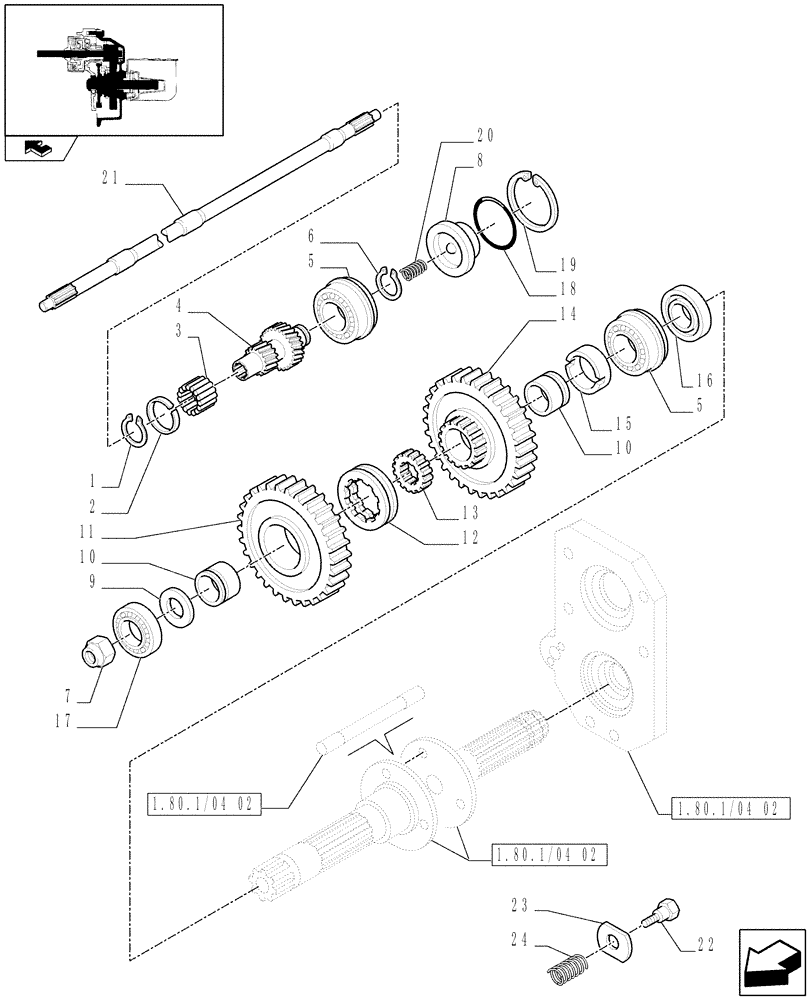

Запчасти Case IH FARMALL 105N (1.80.1/04[01]) - POWER TAKE-OFF (540-1000 RPM) - NA - SHAFTS AND GEARS (VAR.330808) (07) - HYDRAULIC SYSTEM

1

84078050

SNAP RING,M22, Int

1шт.

2

5142178

SNAP RING,1.5mm Thk

D=58

1шт.

3

5173210

NEEDLE BEARING,Needle, 43mm ID x 58mm OD x 22mm W

43 x 58 x 22

1шт.

4

84479210

DRIVEN SHAFT

540/1000 RPM

1шт.

5

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

2шт.

6

11068876

SNAP RING,M40, Ext

1шт.

7

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

8

47133662

COVER

1шт.

9

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

1шт.

10

5124668

BUSHING,38mm ID x 46mm OD x 28mm L

2шт.

11

47123681

GEAR

540 RPM

1шт.

12

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

1шт.

13

5130550

PINION,28T / 12T

1шт.

14

47123683

GEAR

1000 RPM

1шт.

15

5124675

THRUST WASHER,38.1mm ID x 56mm OD x 4mm Thk

1шт.

16

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50 x 65 x 8

1шт.

17

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

18

14466080

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

19

11062976

SNAP RING,Int, M100 x 3

1шт.

20

5149398

SPRING,Compression, 23mm OD x 48mm L

1шт.

21

5177146

SHAFT

1шт.

22

47130774

PIN,13.5mm OD x 22mm L

1шт.

23

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

24

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.
