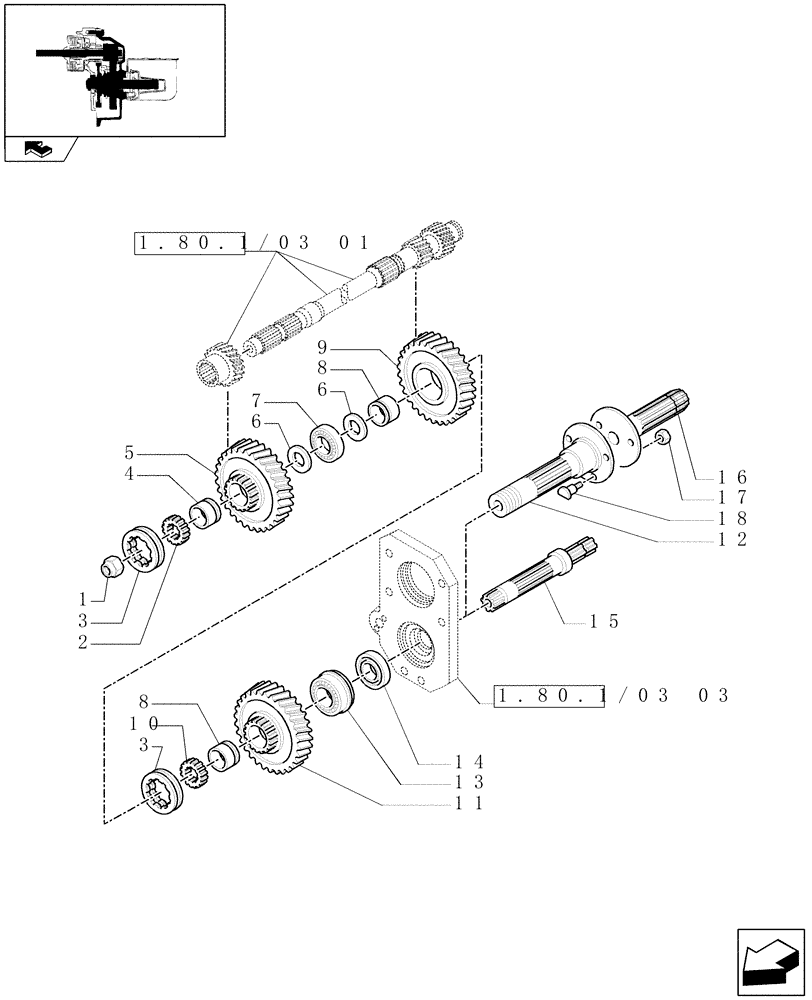

Запчасти Case IH FARMALL 105N (1.80.1/03[02]) - POWER TAKE-OFF (540-540E-1000 RPM) WITH GROUND SPEED - SHAFTS AND GEARS (VAR.330817) (07) - HYDRAULIC SYSTEM

1

5100183

LOCK NUT,Hex, M328 x 1.5, Cl 8.8

M28 x 1.5

1шт.

2

5173196

GEAR,12T Internal / 26T External

1шт.

3

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

2шт.

4

5173189

BUSHING,34mm ID x 46mm OD x 28mm L

1шт.

5

84478097

GEAR,52T

1000 RPM

1шт.

6

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

2шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

8

5124668

BUSHING,38mm ID x 46mm OD x 28mm L

2шт.

9

84478101

GEAR,52T

540 RPM

1шт.

10

5130550

PINION,28T / 12T

1шт.

11

84478100

GEAR,54T

540E RPM

1шт.

12

5173191

SHAFT

1шт.

13

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

14

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50 x 65 x 8

1шт.

15

5185749

SHAFT,M28 x 1.5 x 316mm L, 12T

1шт.

16

5185601

SHAFT,1000 rpm, 21 Teeth

1000 RPM

1шт.

16

5185602

SHAFT,540 rpm, 6 Teeth

540 RPM, 6 Teeth

1шт.

17

16105025

LOCK NUT,M12 x 1.25, Cl 10

3шт.

18

44012300

PIN,14mm OD x 37mm L

M12 x 1.25 x 37

3шт.
