Запчасти Case IH FARMALL 105N (1.75.1/01) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - ELECTR. CONTROL UNIT (VAR.330278-332278 / 743509) (06) - ELECTRICAL SYSTEMS

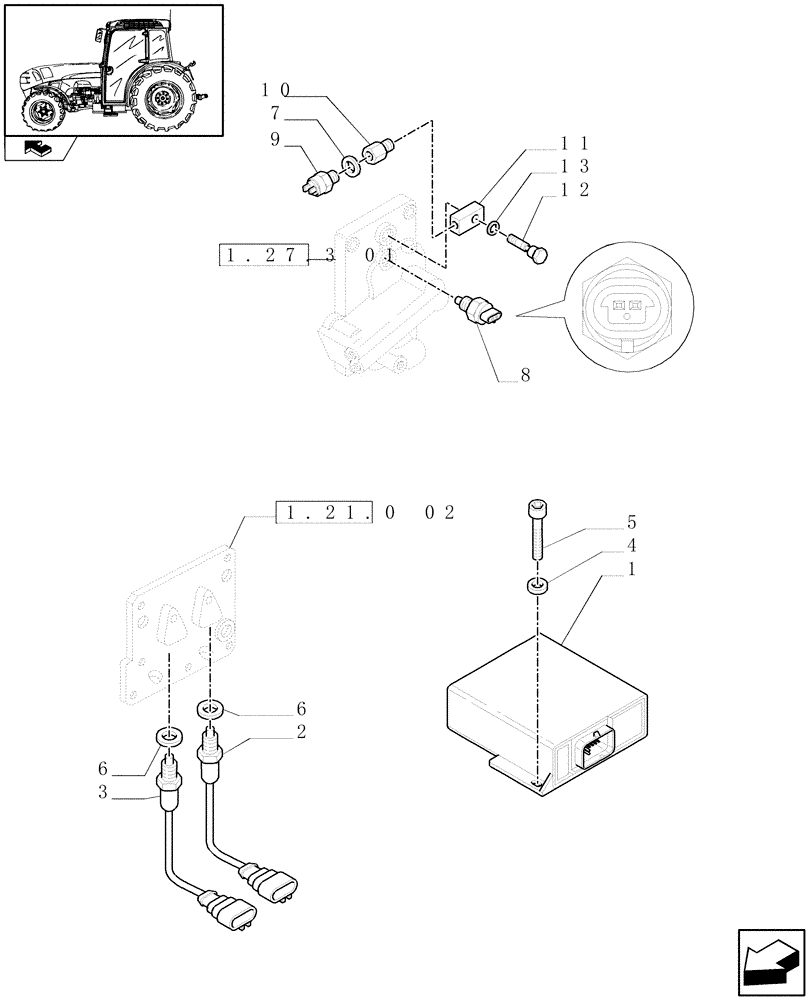

Схема запчастей Case IH FARMALL 105N - (1.75.1/01) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - ELECTR. CONTROL UNIT (VAR.330278-332278 / 743509) (06) - ELECTRICAL SYSTEMS
7
6
3
6
5
8
12
home
11
1.27.3 01
9
2
1.21.0 02
1
4
10
13

Артикул

Название

Примечание

Количество

1

84387340

ECU

1шт.

2

87585979

SWITCH

Grey, Serial Range: -`0

1шт.

Gear Control Neutral Position Detector

1шт.

3

87585980

SWITCH

Green, Serial Range: -`0

1шт.

Range Control Neutral Position Detector

1шт.

4

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

5

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

2шт.

6

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

M14

2шт.

7

10280060

SEAL,M14.2 x 20 x 1.5

2шт.

8

82028133

SENSOR,3/8"-18

, Serial Range: -`0

1шт.

Transmission Temperature

1шт.

9

5157750

PRESSURE SWITCH

, Serial Range: -`0

1шт.

Transmission Oil

1шт.

10

87745448

HYD CONNECTOR,M12 x 1.5 NPT x M12 x 1.5 NPT

1шт.

11

5198570

BLOCK

1шт.

12

5198569

BANJO BOLT,M12 x 1.5 x 44mm

1шт.

13

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 17
