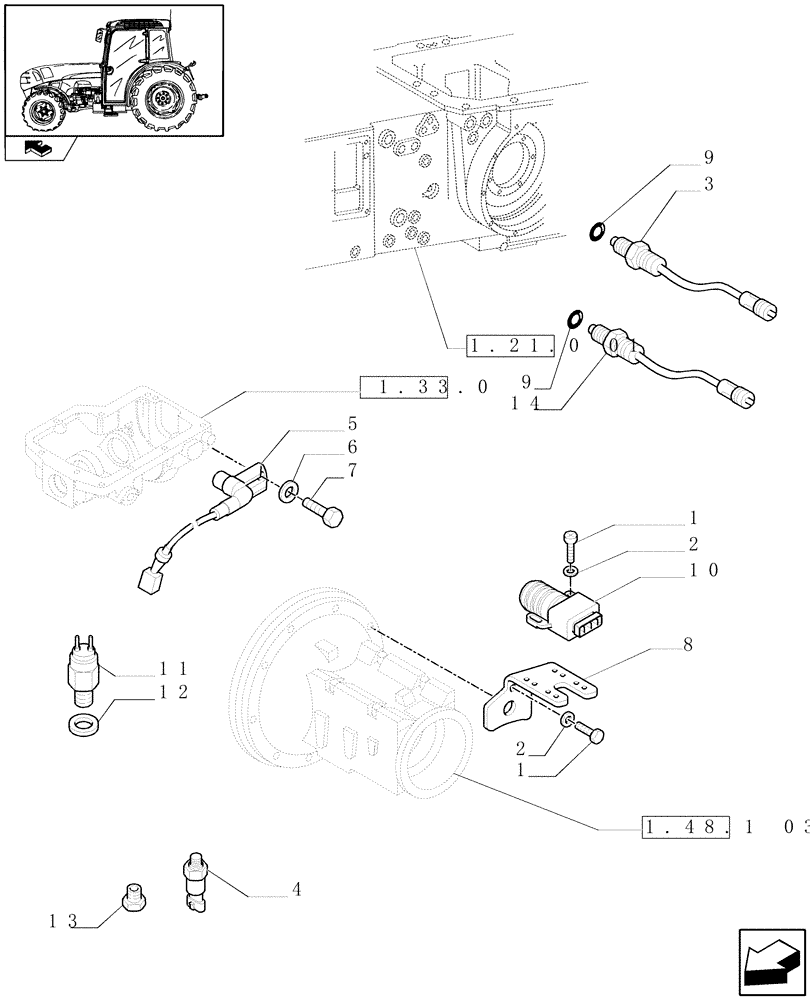

Запчасти Case IH FARMALL 105N (1.75.0) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

1

13272214

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

4шт.

2

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

4шт.

3

87598057

SWITCH

Red, 75N, 85N, 95N, Serial Range: -`0

1шт.

Auto 4WD Detector

1шт.

4

5190018

PRESSURE SWITCH

Pressure (N.C.)

1шт.

5

87564757

SENSOR

Hall Effect, 75N, 85N, 95N

2шт.

6

10615476

LOCK WASHER,Ext Tooth, M6

2шт.

7

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

8

87317061

BRACKET

1шт.

9

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

2шт.

10

47137022

SWITCH

1шт.

11

5157750

PRESSURE SWITCH

1шт.

12

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

13

5102705

PLUG,Hex, 1/8-27

75N, 85N, 95N

1шт.

14

87598056

SWITCH

Yellow, Serial Range: -`0

1шт.

Reverser Control Neutral Position Detector

1шт.
