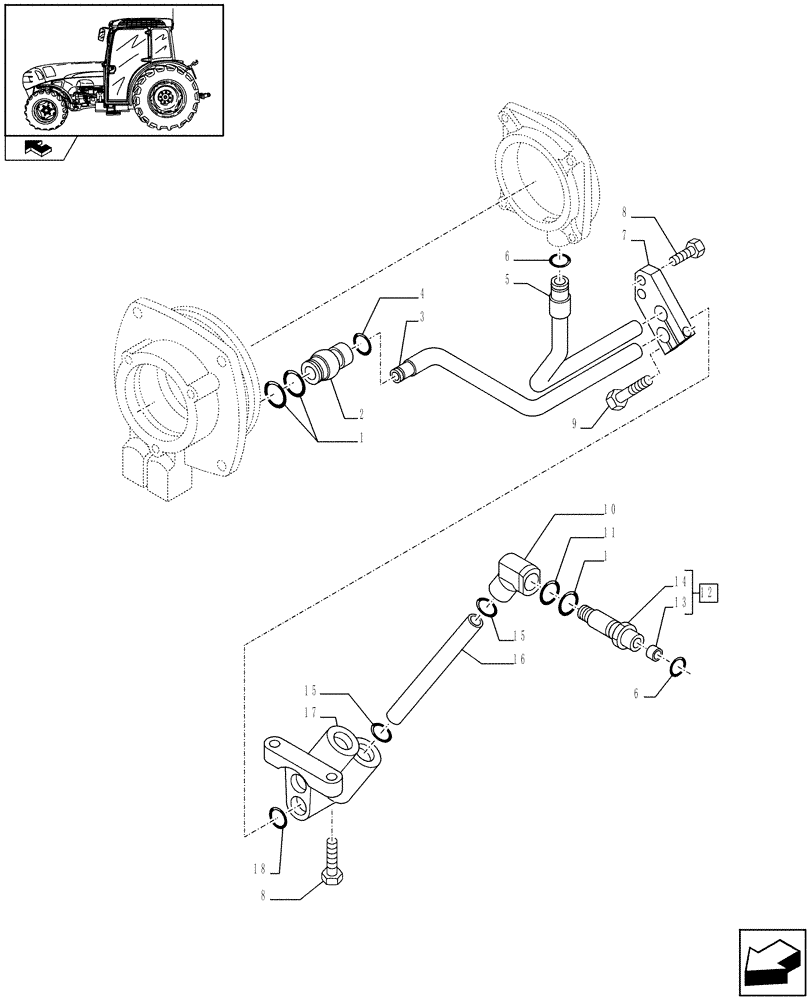

Запчасти Case IH FARMALL 105N (1.68.5/02[03]) - PARKING LOCK (FOR HI-LO 32+16) (VAR.331286 / 743968) (05) - REAR AXLE

1

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

2шт.

2

5173962

HYD CONNECTOR,46mm L

1шт.

3

5176044

RIGID TUBE

1шт.

4

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

5

5176047

RIGID TUBE

1шт.

6

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

7

5176052

BRACKET

1шт.

8

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

9

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

10

5177627

HYD CONNECTOR,M14 x 1.5 x 24mm

2шт.

11

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

12

5177578

HYD CONNECTOR

ASSY, Incl 13, 14

2шт.

13

5176125

VALVE SEAT,3.5mm ID x 8mm OD

1шт.

14

NSS

NOT SOLD SEPARAT

Incl in 12

1шт.

15

5103230

O-RING,2.62mm Thk x 11.91mm ID

6шт.

16

5176059

RIGID TUBE

2шт.

17

5177629

MANIFOLD

1шт.

18

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.
