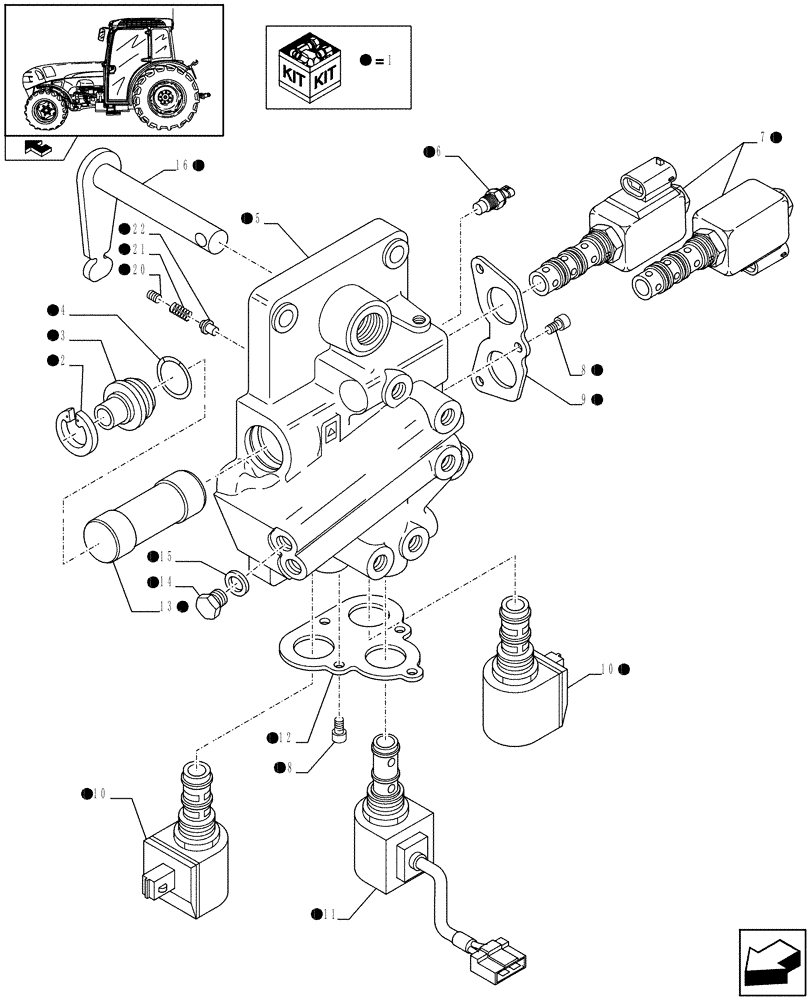

Запчасти Case IH FARMALL 105N (1.68.5/02[01]) - PARKING LOCK (FOR HI-LO 32+16) (VAR.331286 / 743968) (05) - REAR AXLE

1

84553369

CONTROL VALVE

ASSY, Incl 2-19

1шт.

2

13421376

SNAP RING,M30, Int

1шт.

3

5176167

PLUG,M10 x 1

1шт.

4

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

5

84553696

COVER

1шт.

6

82028133

SENSOR,3/8"-18

1шт.

7

84556508

SOLENOID VALVE,10Ohm, 14W

2шт.

8

14305131

HEX SOC SCREW,M6 x 12mm, Cl 10.9, Full Thd

7шт.

9

84553630

PLATE

1шт.

10

84556536

SOLENOID VALVE,12V, 1.6Amp, 19W, 7.6Ohm

2шт.

11

84556509

SOLENOID VALVE

1шт.

12

84553638

PLATE

1шт.

13

47126471

PISTON

1шт.

14

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

15

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

16

84481881

SHAFT,22mm OD x 54.5mm L

1шт.

17

14324911

PLUG,Hex, M14 x 1.5

1шт.

18

84481915

SPRING,11mm OD x 28mm L

1шт.

19

84481885

PIN,6.3mm OD x 11.5mm L

1шт.
