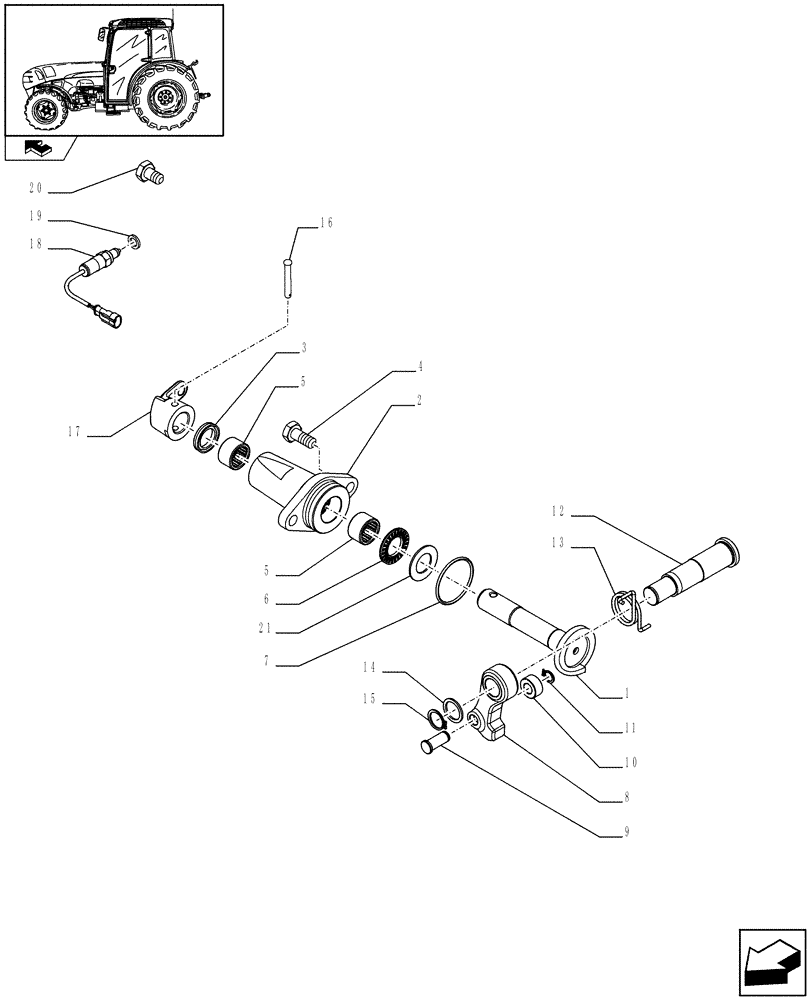

Запчасти Case IH FARMALL 105N (1.65.6) - PARKING LOCK (VAR.331286-333286 / 743968) (05) - REAR AXLE

1

84565078

BRAKE CAM

1шт.

2

84483173

SUPPORT

1шт.

3

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

1шт.

4

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

596031

NEEDLE BEARING,Needle, 20mm ID x 16mm OD x 16mm W

2шт.

6

84236170

ROLLER BEARING,20mm ID x 35mm OD x 2mm W

1шт.

7

14458980

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

8

84483156

LEVER

1шт.

9

84522475

PIVOT PIN

1шт.

10

84236176

ROLLER,20mm OD x 9.5mm L

1шт.

11

11057076

SNAP RING,M12, Int

1шт.

12

84483160

PIN,10mm OD x 35mm L

1шт.

13

84483163

SPRING,30mm OD x 38mm L

1шт.

14

84361122

WASHER,18.3mm ID x 24mm OD x 1.5mm Thk

1шт.

15

11066671

LOCKING RING,18mm OD

1шт.

16

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

16

14601670

LOCK PIN,M5 x 40, Slotted

1шт.

17

84575451

LEVER

, Years: -16-OCT-12

1шт.

17

47396686

LEVER

, Start Year: 17-OCT-12

1шт.

18

87585979

SWITCH

1шт.

19

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

19

10265060

SEALING WASHER,32.4mm ID x 38mm OD x 1.5mm Thk

1шт.

20

10276140

PLUG,M32 x 1.5 x 15, Brass

1шт.

21

84381305

WASHER,20mm ID x 35mm OD

1шт.
