(1.40.3/12) - STD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - JACK (VAR.336329)

Запчасти Case IH FARMALL 105N (1.40.3/12) - STD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - JACK (VAR.336329) (04) - FRONT AXLE & STEERING

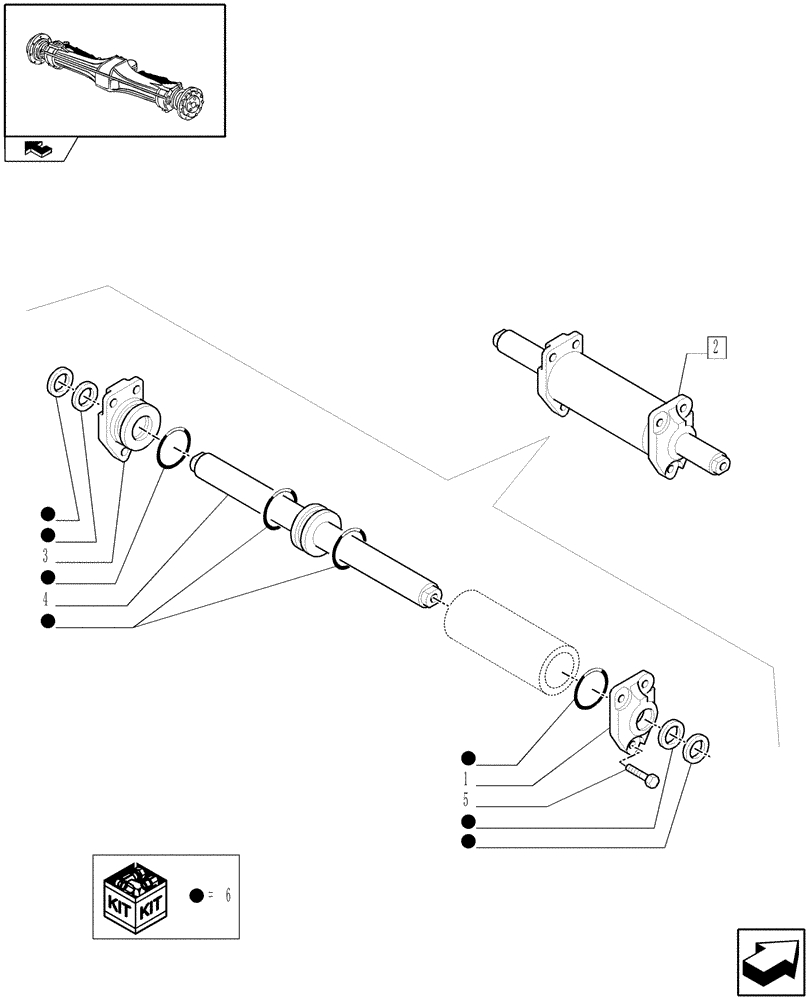

Схема запчастей Case IH FARMALL 105N - (1.40.3/12) - STD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - JACK (VAR.336329) (04) - FRONT AXLE & STEERING
home
6
6
2
6
6
6
6
6
4
3
1
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194356

SUPPORT

RH

1шт.

2

5194354

STEERING CYLINDER

ASSY, Incl 1, 3-6

1шт.

3

5194355

SUPPORT

LH

1шт.

4

5194203

ROD

1шт.

5

14274431

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9

6шт.

6

5194205

SEAL KIT

Seals

1шт.
