(1.32.6/01) - REAR MECHANICAL DIFFERENTIAL LOCK FOR 2WD - ROD AND FORK (VAR.330387 / 743511)

Запчасти Case IH FARMALL 105N (1.32.6/01) - REAR MECHANICAL DIFFERENTIAL LOCK FOR 2WD - ROD AND FORK (VAR.330387 / 743511) (03) - TRANSMISSION

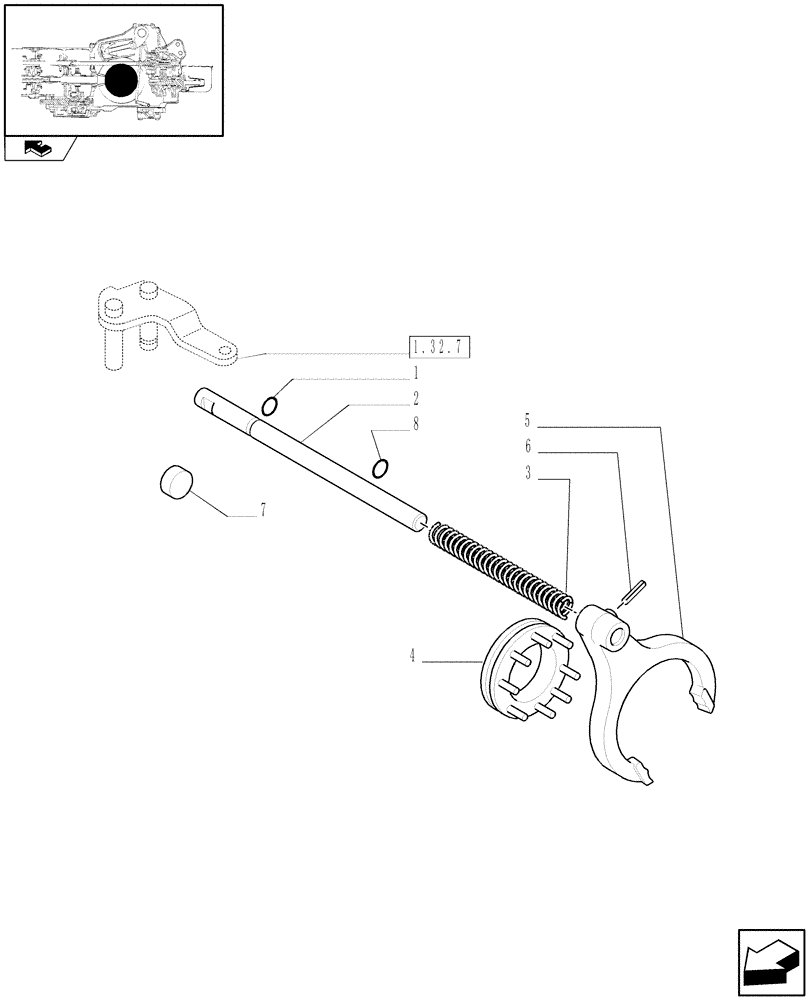

Схема запчастей Case IH FARMALL 105N - (1.32.6/01) - REAR MECHANICAL DIFFERENTIAL LOCK FOR 2WD - ROD AND FORK (VAR.330387 / 743511) (03) - TRANSMISSION
1.32.7
6
2
8
7
3
home
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

2

5176034

ROD

1шт.

3

5114581

SPRING,27mm OD x 220mm

1шт.

4

5121654

SLEEVE

1шт.

5

5176032

YOKE,20mm Hole Dia

1шт.

6

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

7

14282570

PLUG,M30, Tapered, Stainless

1шт.

8

5152322

RING,20mm ID x 28mm OD x 5mm Thk

3.5 x 20 x 28

1шт.

Выбрано товаров: 8
