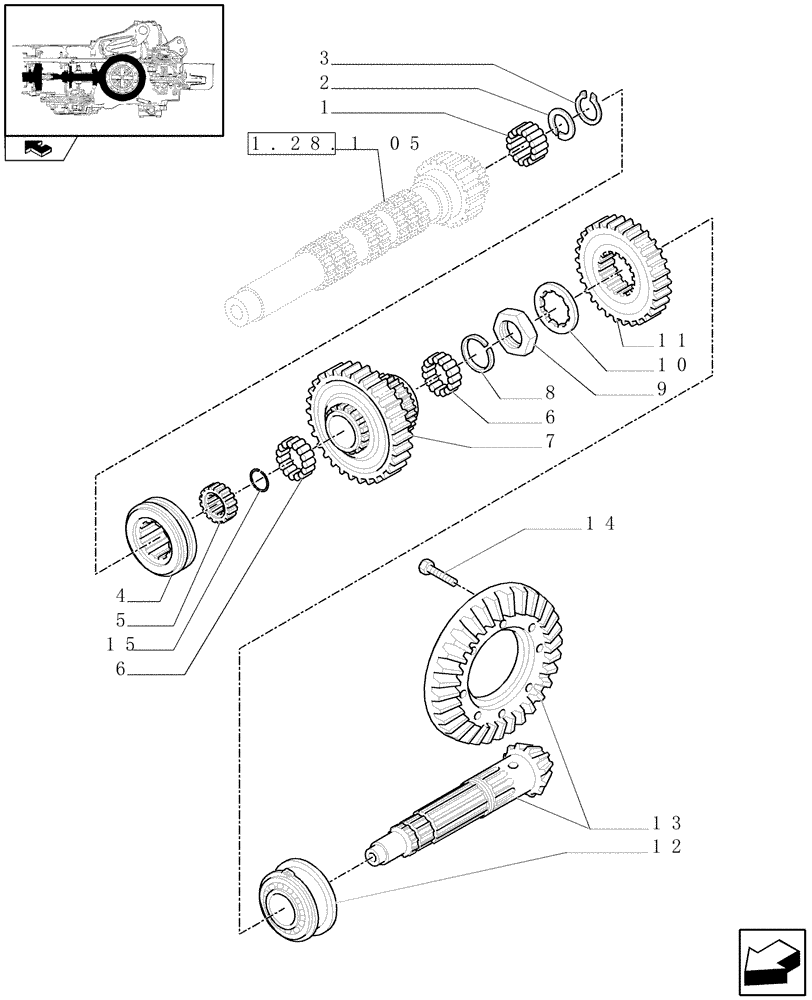

Запчасти Case IH FARMALL 105N (1.32.1[01]) - CENTRAL REDUCTION GEARS AND BEVEL GEAR PAIR (03) - TRANSMISSION

1

5168207

ROLLER BEARING,25mm ID x 35mm OD x 30mm W

1шт.

2

5116573

CIRCLIP,34.1mm ID x 36.4mm OD

D=35

2шт.

3

11067876

SNAP RING,M30, Ext

1шт.

4

5175992

SLEEVE,59mm ID x 89.5mm OD x 24mm L

1шт.

5

87576349

GEAR,22T

1шт.

6

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

2шт.

7

84521183

GEAR,47T / 19T

Med/Low

1шт.

8

5168197

SNAP RING,1.5mm Thk, Int

1шт.

9

5171819

NUT,M38x1

1шт.

10

5168182

LOCK WASHER,36mm ID x 68mm OD x 1.5mm Tnk

1шт.

11

87384791

GEAR,43T

Med/High

1шт.

12

5168205

BEARING ASSY,40mm ID x 97mm OD x 63mm W

1шт.

13

87578327

BEVEL GEAR,11/39T

Ratio 11/39

1шт.

13

87664466

BEVEL GEAR,11T / 32T

Gear, Bevel, Ratio 11/32, Serial Range: -`0

1шт.

4WD (40 KMH) Gearbox Speed Selection for 20 Tyres, VAR.334291

1шт.

13

87664468

BEVEL GEAR,11T / 36T

Ratio 11/36, Serial Range: -`0

1шт.

2WD (30KMH) Gearbox Speed Selection for 20 Tyres, VAR.335291

1шт.

13

87578326

BEVEL GEAR,9/40T

Ratio 9/40, Serial Range: -`0

1шт.

2WD (30KMH) Gearbox Speed Selection for 24, 28, 30 Tyres, VAR.336291,4WD (30KMH) Gearbox Speed Selection for 24, 28 Tyres, VAR.333291

1шт.

14

16326234

BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9

8шт.

15

87576350

SNAP RING,M33.2

1шт.
