Запчасти Case IH FARMALL 105N (1.28.8/02[02]) - REVERSER LUBRICATION PIPE AND RELEVANT PARTS (03) - TRANSMISSION

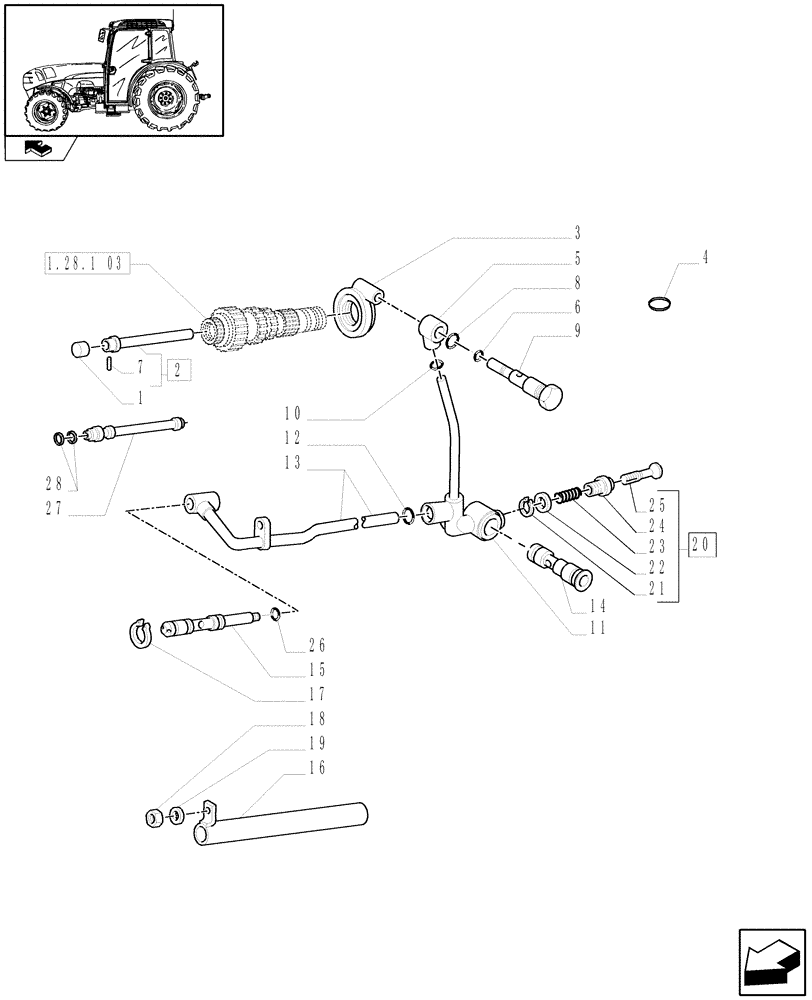

Схема запчастей Case IH FARMALL 105N - (1.28.8/02[02]) - REVERSER LUBRICATION PIPE AND RELEVANT PARTS (03) - TRANSMISSION
17
28
home
20
24
10
2
19
4
22
6
7
12
1
25
23
9
26
27
18
11
13
21
8
3
14
16
15
5
1.28.1 03

Артикул

Название

Примечание

Количество

1

14328601

PLUG,M18, Tapered

1шт.

2

5186901

RIGID TUBE

Secondary, ASSY, Incl 7

1шт.

3

5183609

MANIFOLD

1шт.

4

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

2шт.

5

5177779

HYD CONNECTOR,23mm ID x 28mm OD x 29mm Thk

Upper

1шт.

6

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

7

14158770

LOCK PIN,M2 x 16, Slotted

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

9

5173804

BOLT,Hex, M22 x 1.5 x 113mm L

Rev.

1шт.

10

5103230

O-RING,2.62mm Thk x 11.91mm ID

1шт.

11

5180976

RIGID TUBE

Rev.

1шт.

12

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

13

5183732

RIGID TUBE

1шт.

14

5177777

BANJO BOLT,M11 x 54mm

4WD

1шт.

15

5173802

HYD CONNECTOR,M10 x 1.25 x 119mm L

1шт.

16

5185303

HYD TUBE

1шт.

17

84021874

SNAP RING,M18, Ext

2WD

1шт.

18

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

20

5180935

VALVE

ASSY, Incl 21-25

1шт.

21

5165486

CIRCLIP,9mm

1шт.

22

5165438

SHIM,9.1mm ID x 13.5mm OD x 2.5mm Thk

1шт.

23

5180927

SPRING,13.1mm x 38mm

1шт.

24

5165488

HYD CONNECTOR,M18 x 1.5, 9 mm L

1шт.

25

5165484

VALVE

1шт.

26

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

3шт.

27

5173963

RIGID TUBE

, Serial Range: -`0

1шт.

2WD and 4WD Traction Selection with Hydraulic Transmission, VAR.338401-336402-337402

1шт.

28

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

, Serial Range: -`0

2шт.

2WD and 4WD Traction Selection with Hydraulic Transmission, VAR.338401-336402-337402

1шт.

Выбрано товаров: 30
