Запчасти Case IH FARMALL 105N (1.28.7/03[02]) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - CLUTCH DISKS (VAR.330275-331275 / 743510; VAR.330273) (03) - TRANSMISSION

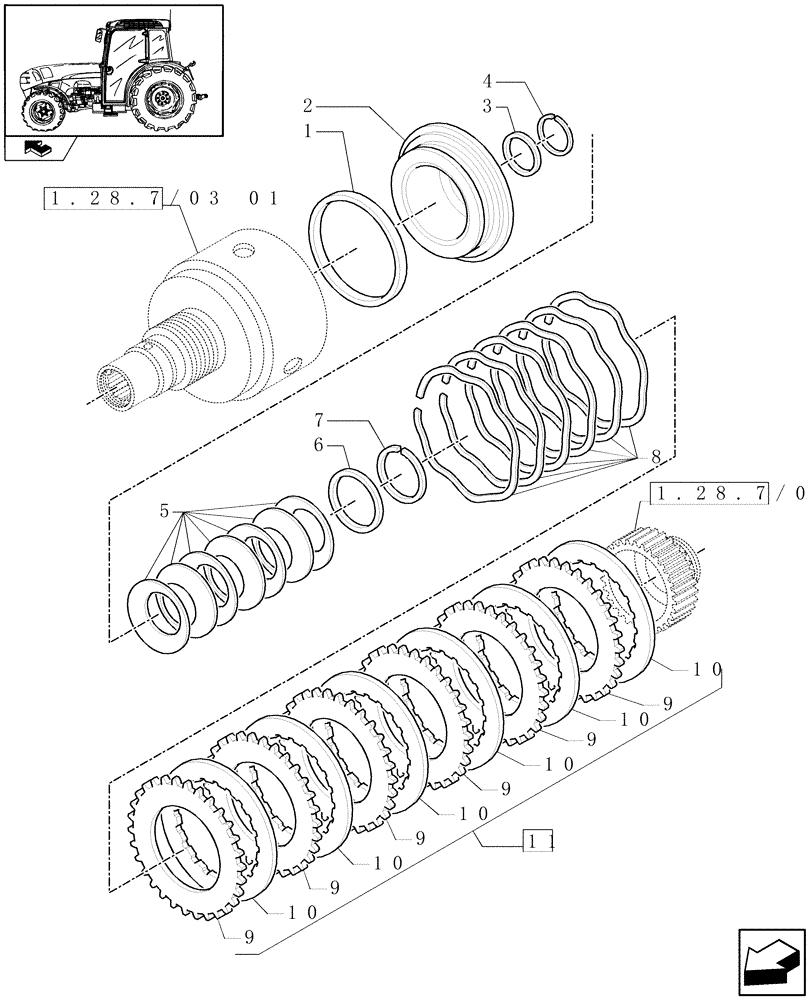

Схема запчастей Case IH FARMALL 105N - (1.28.7/03[02]) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - CLUTCH DISKS (VAR.330275-331275 / 743510; VAR.330273) (03) - TRANSMISSION
7
5
10
9
9
2
9
10
8
1.28.7/03 03
4
10
1
6
9
home
10
1.28.7/03 01
10
9
10
3
11
9

Артикул

Название

Примечание

Количество

1

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

1шт.

2

5179794

PISTON

1шт.

3

5173674

GASKET,35mm ID x 42mm OD x 4mm Thk

1шт.

4

5124473

SNAP RING,1.5mm Thk, Int

D=42

1шт.

5

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

7шт.

6

5168347

CUP,56mm ID x 66mm OD x 3mm Thk

1шт.

7

5168348

SNAP RING,1.5mm Thk, Ext

1шт.

8

81864341

SPRING,148.35mm ID

6шт.

9

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

Thick 2.00 mm

1шт.

9

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

Thick 2.20 mmm

1шт.

10

87534846

CLUTCH PLATE,92.66mm ID x 133.35mm OD x 2mm Thk

6шт.

11

87534849

KIT

Clutch Plate, ASSY, Incl 9, 10

1шт.

Выбрано товаров: 12
