Запчасти Case IH FARMALL 105N (1.28.7/02[03]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - CLUTCH PLATE HUBS (VAR.330278-332278 / 743509) (03) - TRANSMISSION

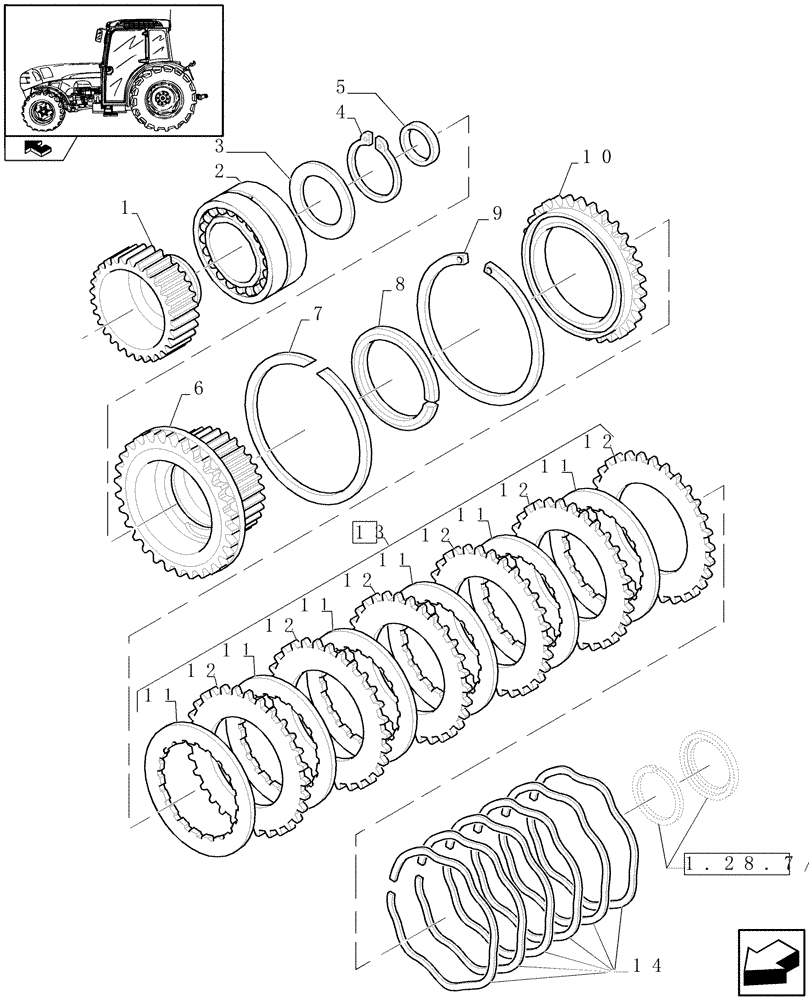

Схема запчастей Case IH FARMALL 105N - (1.28.7/02[03]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - CLUTCH PLATE HUBS (VAR.330278-332278 / 743509) (03) - TRANSMISSION
1
12
6
12
home
4
2
11
11
11
11
3
12
12
1.28.7/02 04
11
8
9
11
12
5
14
7
10
13
12

Артикул

Название

Примечание

Количество

1

5171654

HUB,45T / 18 T

1шт.

2

5168354

BALL BEARING,50mm ID x 80mm OD x 16mm W

1шт.

3

5171655

THRUST WASHER,50mm ID x 75mm OD x 1mm Thk

1шт.

4

11069376

SNAP RING,M50, Ext

1шт.

5

5197432

SEALING RING,3.53mm Thk x 34.52mm ID, 90 Duro

1шт.

6

5171664

HUB,50T / 45T

1шт.

7

5173675

SNAP RING,148.6mm ID x 156.6mm OD x 2.5mm Thk

1шт.

8

5177500

SEAL,Locking, 90.7mm ID x 100.5mm OD x 3.8mm Thk

1шт.

9

5162251

CIRCLIP,142.5mm ID

1шт.

10

5171657

DISC,100mm ID x 152.6mm OD x 10mm Thk

1шт.

11

87534846

CLUTCH PLATE,92.66mm ID x 133.35mm OD x 2mm Thk

6шт.

12

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

Thick 2,0 mm

1шт.

12

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

Thick 2,2 mm

1шт.

13

87534849

KIT

Clutch Plate, ASSY, Incl 11, 12

1шт.

14

81864341

SPRING,148.35mm ID

6шт.

Выбрано товаров: 15
