(41.216.060) - VAR - 336329 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, W/ FRONT BRAKE, STEERING CYLINDER

Запчасти Case IH FARMALL 100N (41.216.060) - VAR - 336329 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, W/ FRONT BRAKE, STEERING CYLINDER (41) - STEERING

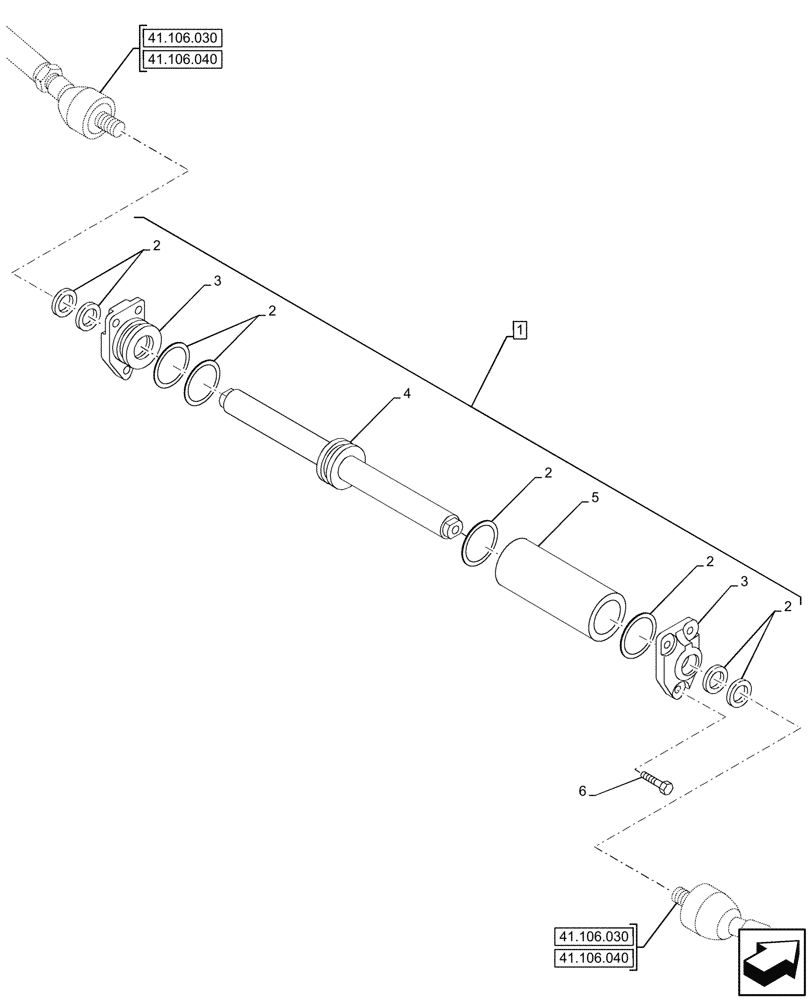

Схема запчастей Case IH FARMALL 100N - (41.216.060) - VAR - 336329 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, W/ FRONT BRAKE, STEERING CYLINDER (41) - STEERING
41.106.030
5
1
2
4
2
3
2
6
2
3
2
41.106.040
41.106.040
41.106.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84570795

STEERING CYLINDER

ASSY, Incl 2 - 5

1шт.

2

5194205

SEAL KIT

1шт.

3

84569103

HEAD

2шт.

4

5194203

ROD

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

84582573

BOLT

7шт.

Выбрано товаров: 6
