(41.216.040) - VAR - 744473 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, W/O FRONT BRAKES, STEERING CYLINDER, HYDR LINES

Запчасти Case IH FARMALL 100N (41.216.040) - VAR - 744473 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, W/O FRONT BRAKES, STEERING CYLINDER, HYDR LINES (41) - STEERING

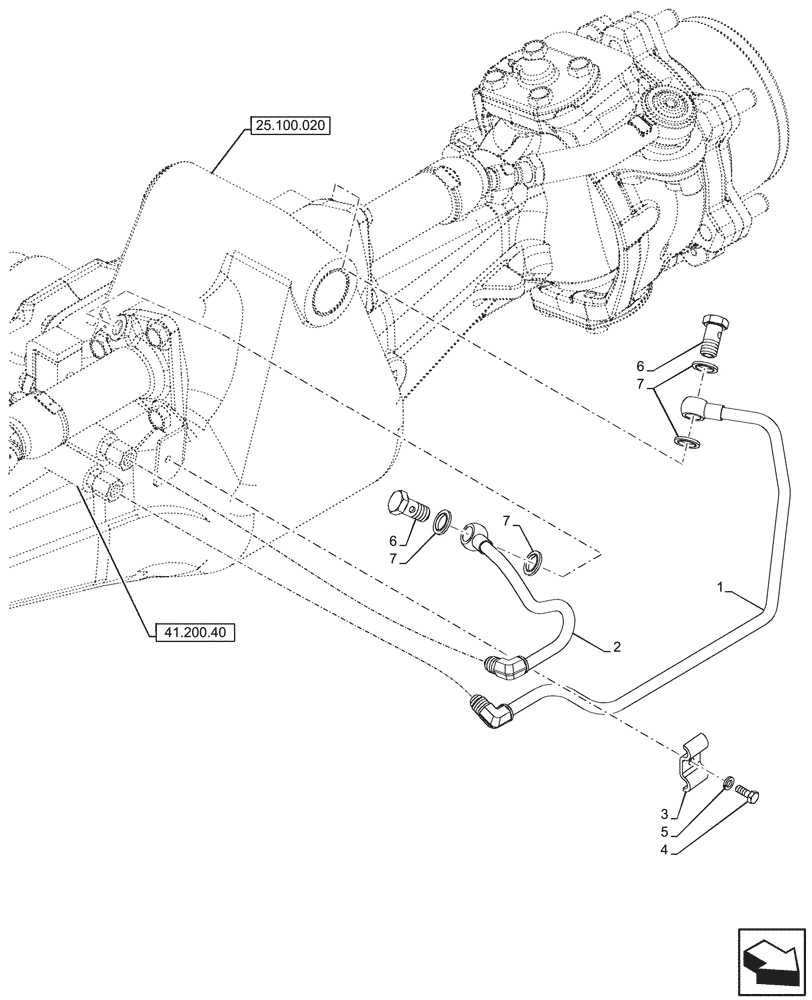

Схема запчастей Case IH FARMALL 100N - (41.216.040) - VAR - 744473 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, W/O FRONT BRAKES, STEERING CYLINDER, HYDR LINES (41) - STEERING
25.100.020
5
7
3
6
4
6
41.200.40
7
1
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47125593

RIGID TUBE

Pipe for RH Steering

1шт.

2

47916530

PIPE

Pipe for LH Steering

1шт.

3

4999554

CLAMP,2 Hoses

1шт.

4

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

5

10571574

LOCK WASHER

1шт.

6

10184311

BANJO BOLT,M14 x 1.5 x 27mm

2шт.

7

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

4шт.

Выбрано товаров: 7
