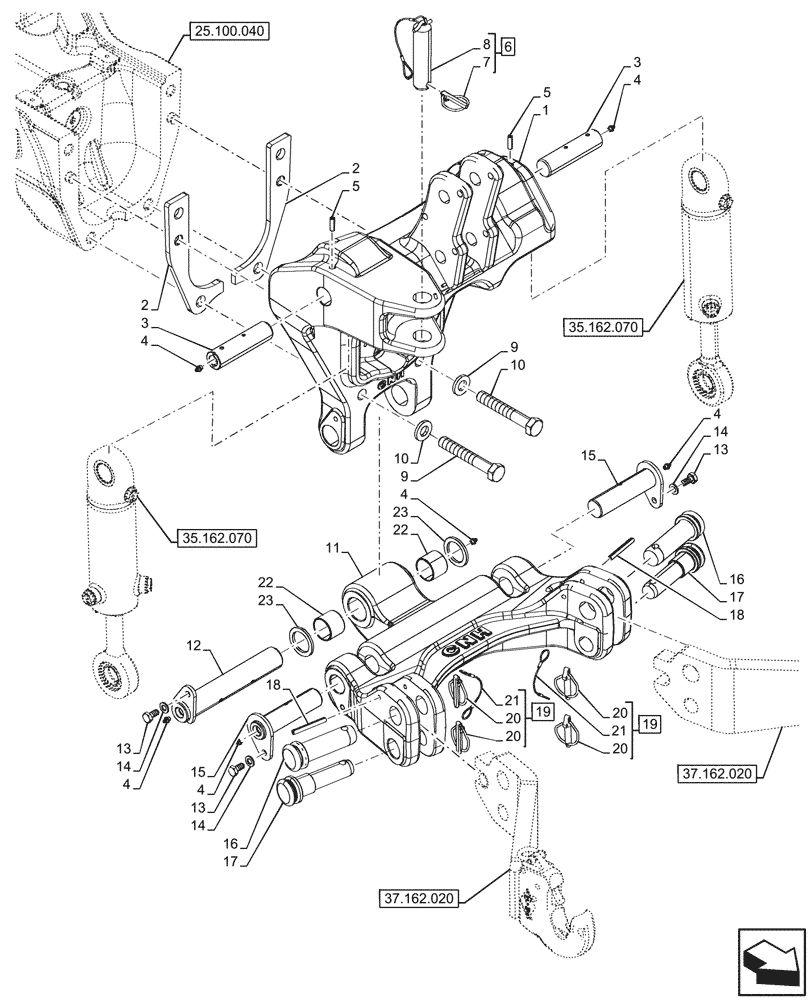

Запчасти Case IH FARMALL 100N (37.162.040) - VAR - 341975, 341976, 341979, 341980, 342336, 342337, 342340, 342346, 342347, 342350 - HYDRAULIC LIFT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47954851

SUPPORT

1шт.

2

47942964

SHIM

2шт.

3

47686195

PIN,35mm OD x 134mm L

2шт.

4

87588865

FITTING,M6 x 1 x 12mm L

6шт.

5

84179663

SET SCREW,Hex, M8 x 1.25 x 30, Full Thd

2шт.

6

47457860

PIN,31.5mm OD x 128mm L

ASSY, Incl 7, 8

1шт.

7

47458998

LINCH PIN,9.5mm OD x 62mm L

1шт.

8

NSS

NOT SOLD SEPARAT

Pin, Incl in 6

1шт.

9

15989734

BOLT,Hex, M20 x 1.5 x 130mm, Cl 10.9

4шт.

10

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

4шт.

11

47957926

SUPPORT

1шт.

12

47686265

PIN,227mm L

1шт.

13

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

15

47686253

PIN,136.5mm L

2шт.

16

84313807

PIN,35mm OD x 135mm L

2шт.

17

47928060

PIN,30/36mm OD x 118mm L

2шт.

18

14607871

ROLL PIN,8mm OD x 70mm L

2шт.

19

47457820

LOCK PIN,10.5mm OD

ASSY, Incl 20, 21

2шт.

20

47458993

LINCH PIN,49.2mm OD x 66mm L

2шт.

21

NSS

NOT SOLD SEPARAT

Pin, Incl in 19

1шт.

22

84545855

BUSHING,40mm ID x 44mm OD x 35mm L

2шт.

23

84485800

SPACER,40.5mm ID x 56.5mm OD x 4.5mm L

2шт.
