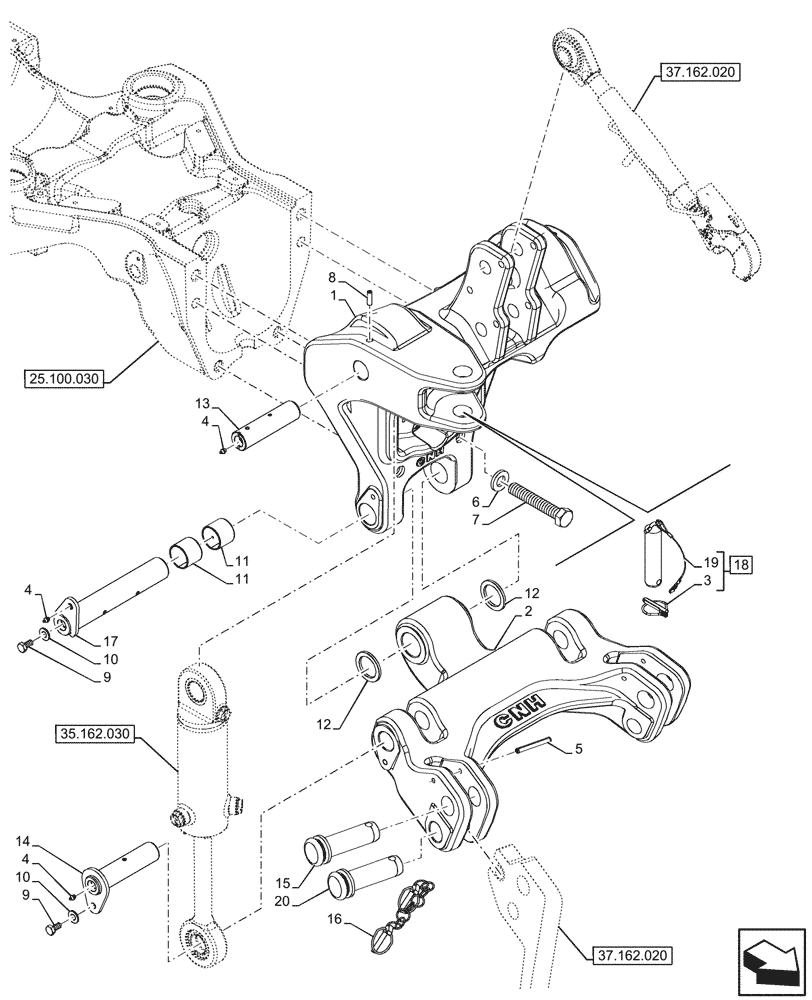

Запчасти Case IH FARMALL 100N (37.162.030) - VAR - 341975, 341976, 341979, 341980, 342336, 342337, 342340, 342346, 342347, 342350, 743522, 759019 - HYDRAULIC LIFT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47954851

SUPPORT

1шт.

2

47957926

SUPPORT

1шт.

3

47458998

LINCH PIN,9.5mm OD x 62mm L

1шт.

4

87588865

FITTING,M6 x 1 x 12mm L

6шт.

5

14607871

ROLL PIN,8mm OD x 70mm L

2шт.

6

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

4шт.

7

15989534

SCREW,Hex, M20 x 1.5 x 120mm

4шт.

8

84179663

SET SCREW,Hex, M8 x 1.25 x 30, Full Thd

2шт.

9

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

10

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

11

84545855

BUSHING,40mm ID x 44mm OD x 35mm L

2шт.

12

84485800

SPACER,40.5mm ID x 56.5mm OD x 4.5mm L

2шт.

13

47686195

PIN,35mm OD x 134mm L

2шт.

14

47686253

PIN,136.5mm L

2шт.

15

84313807

PIN,35mm OD x 135mm L

2шт.

16

47457820

LOCK PIN,10.5mm OD

2шт.

17

47686265

PIN,227mm L

1шт.

18

47457860

PIN,31.5mm OD x 128mm L

ASSY, Incl 3, 19

1шт.

19

NSS

NOT SOLD SEPARAT

Pin, Incl in 18

1шт.

20

47928060

PIN,30/36mm OD x 118mm L

2шт.
