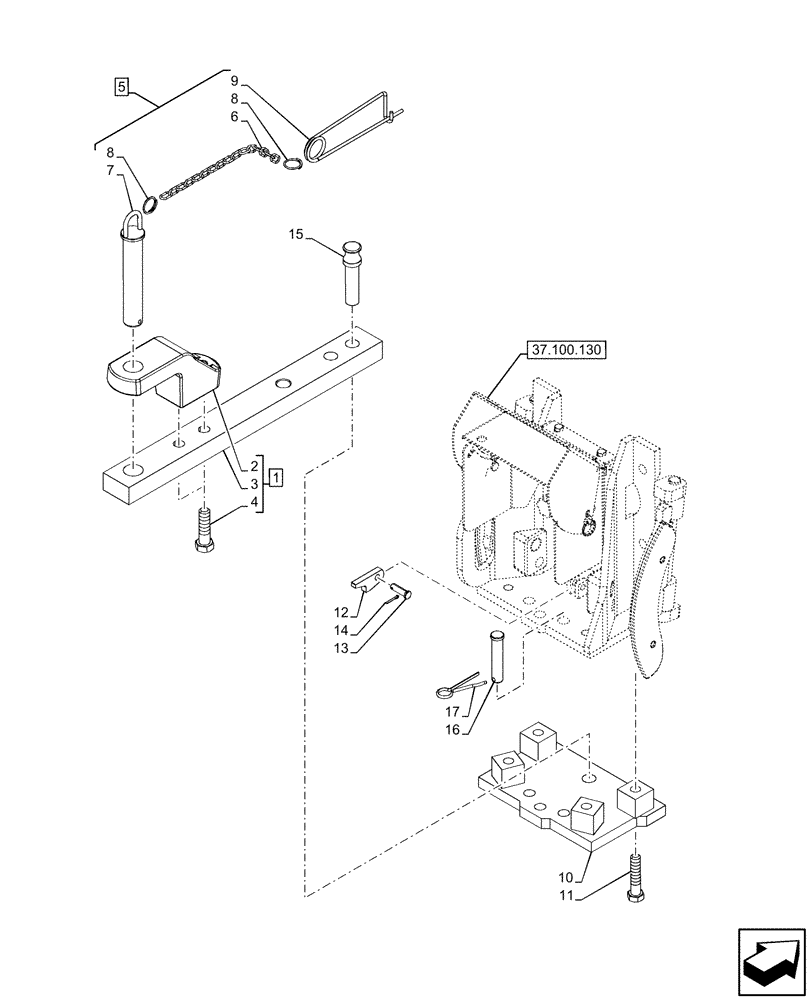

Запчасти Case IH FARMALL 100N (37.100.160) - VAR - 338247 - DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5190747

DRAWBAR

ASSY, Grey, Incl 2 - 4

1шт.

2

5186156

DRAWBAR,589mm L x 60mm W x 35mm Thk

1шт.

3

15984634

BOLT,Hex, M18 x 1.5 x 70mm, Cl 10.9

2шт.

4

5151269

CLEVIS,220mm L x 110mm W x 30mm Thk, 80mm Offset

Grey

1шт.

5

5163732

PIN,32mm OD x 182mm L

ASSY, Incl 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Tow Hitch, Incl in 5

1шт.

7

5152004

HAIR PIN COTTER,195mm L

1шт.

8

44901192

SNAP RING,25mm ID

1шт.

9

5155491

PIVOT

1шт.

10

5186155

SUPPORT

1шт.

11

15981321

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

4шт.

12

5130621

LEVER

1шт.

13

5130620

PIN,10mm OD x 34mm L

1шт.

14

10796401

COTTER PIN,M3.2 x 18

M3.2 x 18

1шт.

15

5186858

PIN,22mm OD x 114mm L

22mm OD x 114mm L

1шт.

16

5187029

PIN,18mm OD x 92mm L

18mm OD x 92mm L

2шт.

17

5112606

COTTER PIN,2.5mm OD x 66.5mm L

M3.5 x 75

2шт.
