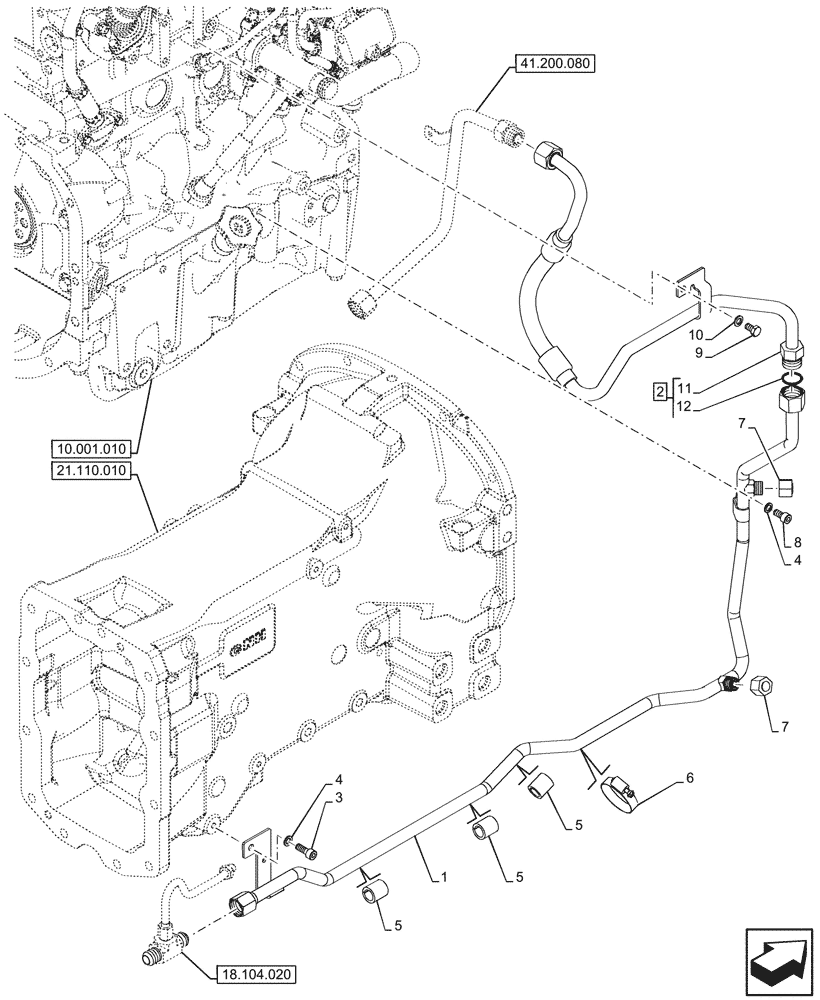

Запчасти Case IH FARMALL 100N (35.204.830) - VAR - 744833, 759013 - DELIVERY PIPE, MID MOUNT VALVES, CAB (35) - HYDRAULIC SYSTEMS

1

47782079

PIPE

from Lube Filter to Tee Fitting

1шт.

2

47707047

PIPE

ASSY, Return to Steering, Incl 11, 12

1шт.

3

14359221

HEX SOC SCREW,M8 x 22mm, Cl 8.8, Full Thd

1шт.

4

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

5

47389651

SPACER,16mm ID x 23mm OD x 25mm L

3шт.

6

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

7

9625546

CAP,11/16" - 16 ORFS

2шт.

8

14306231

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

9

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

10

11198074

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

1шт.

11

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

12

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
