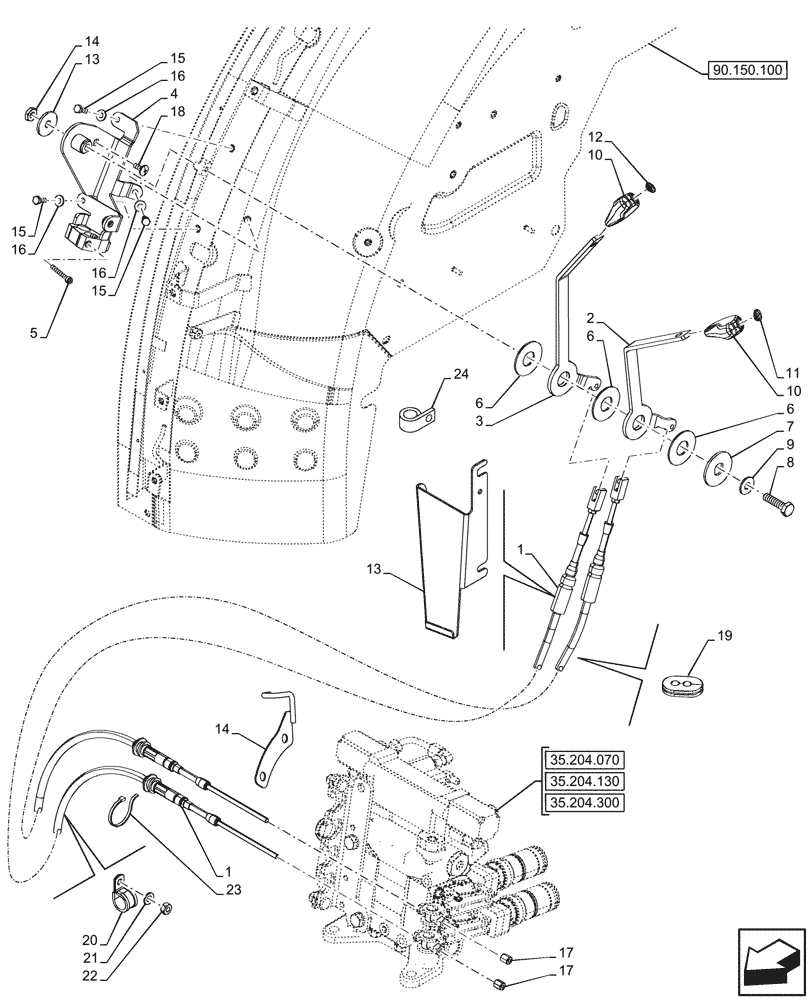

Запчасти Case IH FARMALL 100N (35.204.200) - VAR - 759022, 759023 - REMOTE CONTROL VALVE, LEVER, CAB (35) - HYDRAULIC SYSTEMS

1

47931821

REMOTE CONTROL

2шт.

2

84481970

LEVER

1шт.

3

84481969

LEVER

1шт.

4

47893833

BRACKET

1шт.

5

14358920

HEX SOC SCREW,M5 x 45mm, Cl 8.8, Full Thd

1шт.

6

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

7

5188905

WASHER,18mm ID x 50mm OD x 3 Thk

1шт.

8

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

9

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

10

47381094

KNOB,Black

2шт.

11

87698505

DATA PLAQUE

1шт.

12

87698506

DATA PLAQUE

1шт.

24

48040608

BRACKET

1шт.

25

48033604

BRACKET

1шт.

15

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

3шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

3шт.

17

10720114

NUT,Hex, M6 x 1

2шт.

18

14778814

SCREW,Cross Rec Cheese Hd, M6 x 16mm, Cl 5.8

1шт.

19

84481972

GROMMET,2x12.8mm ID x 44mm L x 6mm Thk

1шт.

20

10115601

CLIP,10mm, Coat, P Type

1шт.

21

11190674

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

1шт.

22

10791014

NUT,M10 x 1.25, Cl 04

1шт.

23

14560087

CABLE TIE,103mm, Black

1шт.

24

5188267

COLLAR CLAMP,13mm ID x 20mm W

1шт.
