Запчасти Case IH FARMALL 100N (21.104.050) - VAR - 342266, 342267, 759011 - TRANSMISSION OIL, FILTER, 80L/MIN, CAB (21) - TRANSMISSION

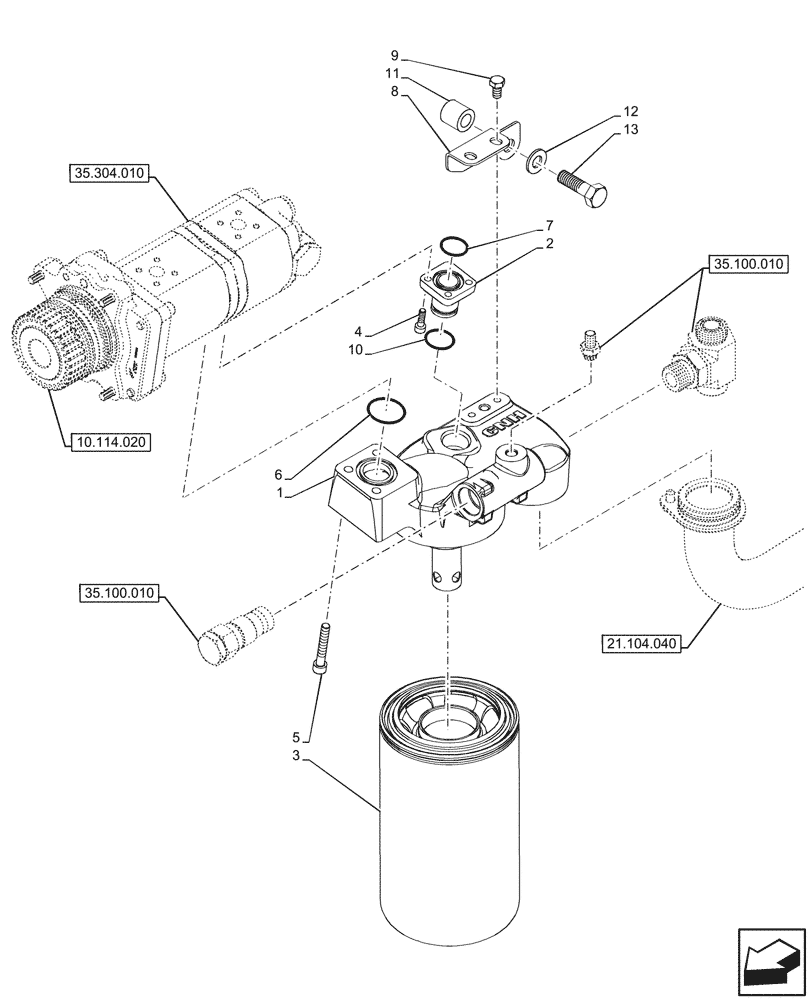

Схема запчастей Case IH FARMALL 100N - (21.104.050) - VAR - 342266, 342267, 759011 - TRANSMISSION OIL, FILTER, 80L/MIN, CAB (21) - TRANSMISSION
35.100.010
4
2
1
10
3
8
11
13
7
9
6
5
12
10.114.020
21.104.040
35.304.010
35.100.010

Артикул

Название

Примечание

Количество

1

47459745

SUPPORT

1шт.

2

47459735

HYDRAULIC MANIFOLD

1шт.

3

84581942

HYDRAULIC OIL FILTER,135mm OD x 244mm L, M55 x 1.5, 50 Microns

1шт.

4

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

3шт.

5

14306924

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8

3шт.

6

14458380

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

1шт.

7

14457780

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

8

47467853

BRACKET

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

10

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

11

47467864

SPACER,13mm ID x 30mm OD x 15mm L

1шт.

12

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

1шт.

13

15215731

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 13
