Запчасти Case IH FARMALL 90CL (10.216.100) - VAR - 759487 - FUEL COOLER, LINES, W/O CAB (10) - ENGINE

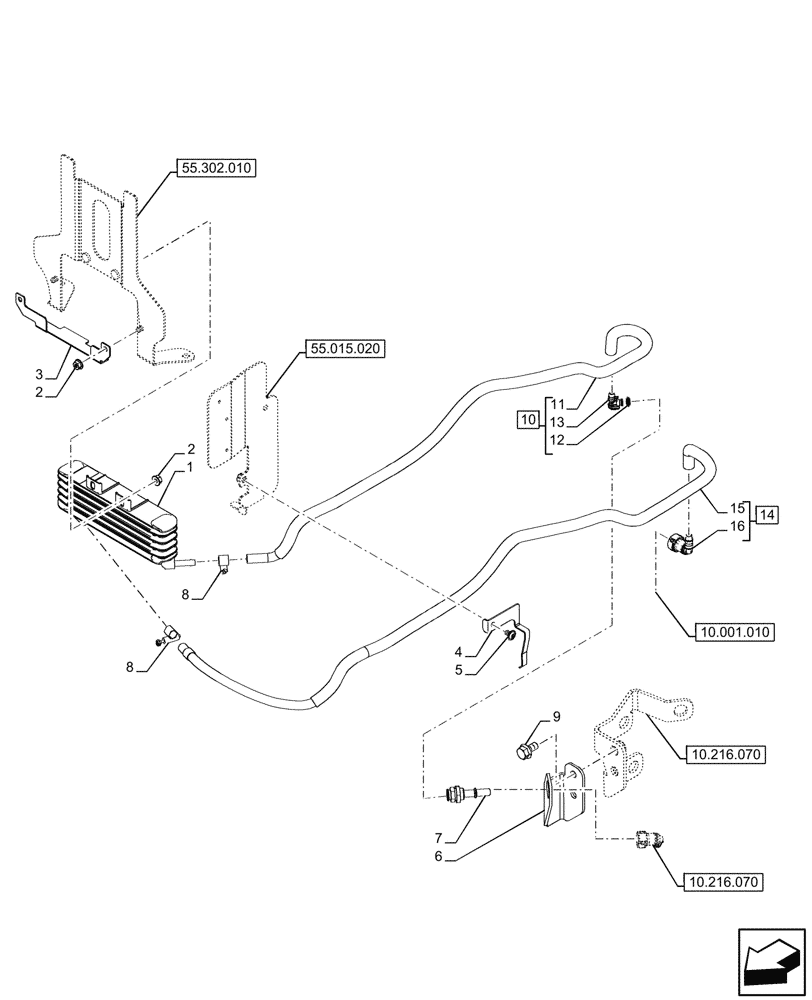

Схема запчастей Case IH FARMALL 90CL - (10.216.100) - VAR - 759487 - FUEL COOLER, LINES, W/O CAB (10) - ENGINE
55.302.010
11
2
10
7
13
4
5
1
2
15
9
16
12
6
8
10.216.070
10.216.070
14
3
8
55.015.020
10.001.010

Артикул

Название

Примечание

Количество

1

48050279

FUEL COOLER

1шт.

2

14059314

FLANGE NUT,Hex, M8 x 1, Cl 8

4шт.

3

48087179

Black Support Pipe

BRACKET

1шт.

4

48076502

Black Fixing Hose

BRACKET

1шт.

5

920019109

HEX SOC SCREW,Flg, Btn Hd, M8 x 12mm, Cl 8.8

1шт.

6

48086642

Black Fixing Connector

BRACKET

1шт.

7

48052642

HYD CONNECTOR,M20 x 1.5 x 76.6mm L

1шт.

8

84499092

CLAMP,Min 14mm, Max 27mm x 14mm Thk

2шт.

9

47455733

FLANGE BOLT,Hex, M8 x 16, Full Thd, Cl 8.8

2шт.

10

48052636

ASSY, Return, 1165mm, Incl 11 - 13

HOSE,10mm ID x 1165mm L

1шт.

11

NSS

NOT SOLD SEPARAT

Hose, Incl in 10

1шт.

12

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

14

48052637

ASSY, Delivery, 1450mm, Incl 15, 16

HOSE,10mm ID x 1450mm L, PVC

1шт.

15

NSS

NOT SOLD SEPARAT

Hose, Incl in 14

1шт.

16

84527503

FITTING,11.8mm ID, 90°

1шт.

Выбрано товаров: 16
