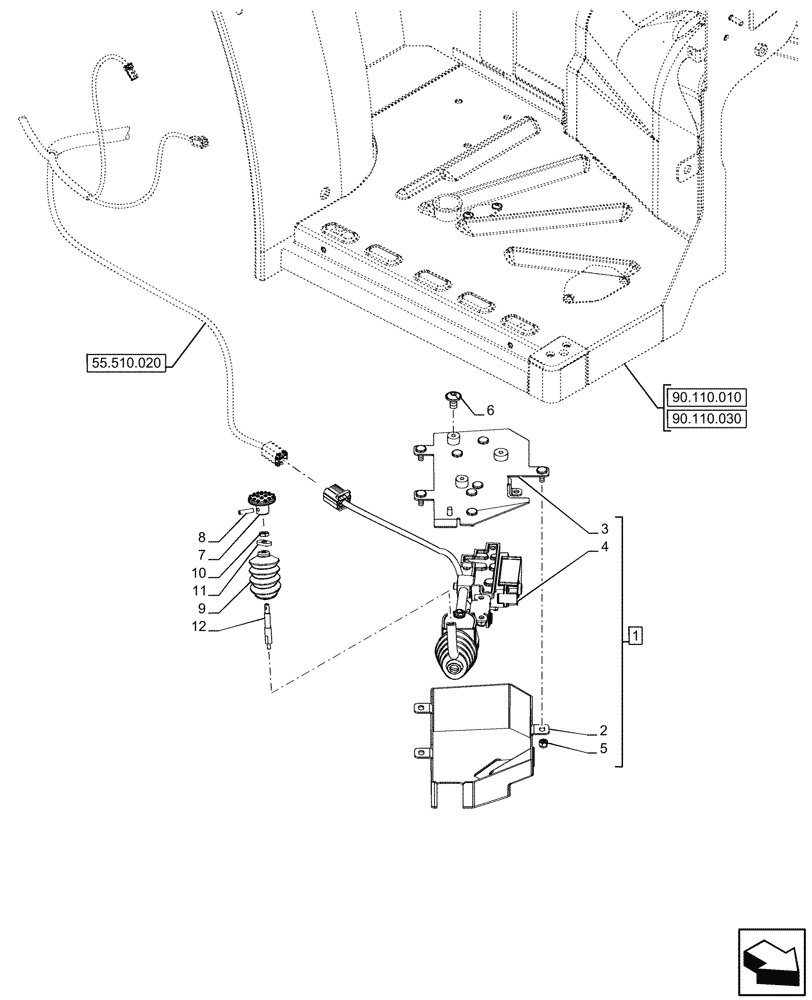

Запчасти Case IH FARMALL 90CL (55.525.030) - VAR - 759028, 759029 - FOOT, THROTTLE, W/O CAB (55) - ELECTRICAL SYSTEMS

1

48103729

ASSY, Incl 2 - 4

THROTTLE

1шт.

2

47976918

SHIELD

Black

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Throttle, Incl in 1

1шт.

5

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

1шт.

6

2700886

HEX SOC SCREW,Hex, M6 x 4 x 10mm, Cl 10.9 BNZ

M6 x 10mm Cl 10.9 BNZ

3шт.

7

84232302

SUPPORT

Foot Throttle

1шт.

8

86639254

COILED PIN,6mm OD x 16mm L

1шт.

9

47869369

BELLOWS

1шт.

10

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

1шт.

11

48098383

WASHER,M10 x 1.5 x 5mm Thk

1шт.

12

48081408

ROD,M6 x 1, M10 x 1.5 x 86mm L

1шт.
