Запчасти Case IH FARMALL 90CL (55.302.010) - VAR - 759324, 759325 - BATTERY (55) - ELECTRICAL SYSTEMS

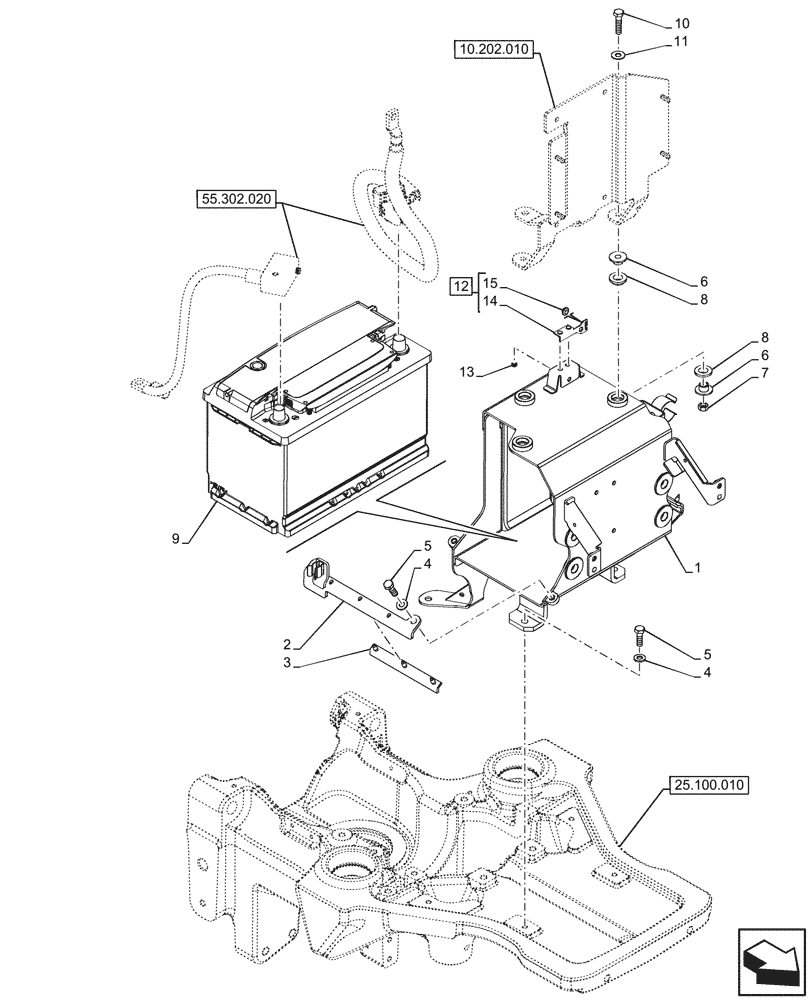

Схема запчастей Case IH FARMALL 90CL - (55.302.010) - VAR - 759324, 759325 - BATTERY (55) - ELECTRICAL SYSTEMS
25.100.010
6
2
1
14
5
9
7
11
4
10
5
12
6
8
4
13
3
15
8
55.302.020
10.202.010

Артикул

Название

Примечание

Количество

1

48065487

SUPPORT

1шт.

2

47688904

SUPPORT

Battery

1шт.

3

47690717

BRACKET

Anchor

2шт.

4

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

6шт.

5

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

6

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

6шт.

7

16100814

NUT,M8, Cl 8, DAC

3шт.

8

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

6шт.

9

73328435

WET BATTERY,LH4 CNH, 12V, 850CCA

1шт.

9

BNH94RMFW

WET BATTERY

New Holland, US only

1шт.

9

CBNH94RMFW

WET BATTERY

New Holland, Canada only

1шт.

9

B94RMFW

WET BATTERY

Case, US only

1шт.

9

CC94RMFW

WET BATTERY

Case, Canada only

1шт.

10

16043980

SCREW,Hex, M8 x 35mm

3шт.

11

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

3шт.

12

48084740

ASSY, Bracket, Incl 14, 15

BRACKET

1шт.

13

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

14

NSS

NOT SOLD SEPARAT

Bracket, Incl in 12

1шт.

15

10399080

GROMMET,M10 x 16 x 22mm

1шт.

Выбрано товаров: 19
