Запчасти Case IH FARMALL 90CL (55.035.020) - VAR - 759024 - 3 REMOTE CONTROL VALVES, W/ DIVERTER, COMPONENTS (MDC) (55) - ELECTRICAL SYSTEMS

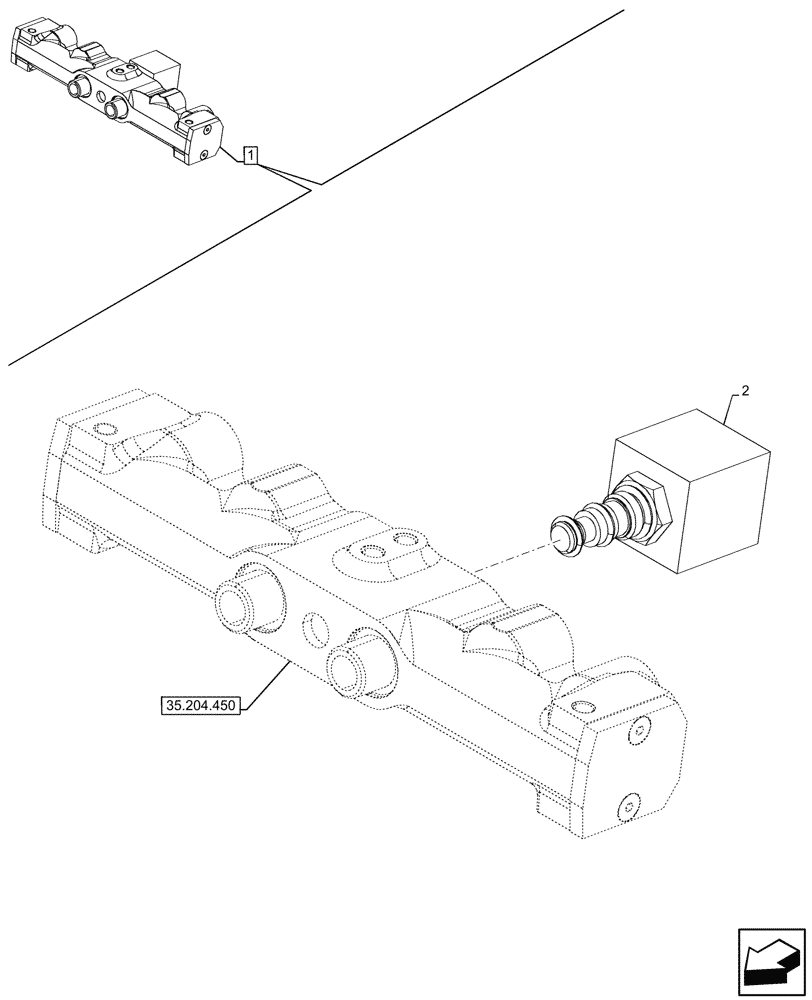

Схема запчастей Case IH FARMALL 90CL - (55.035.020) - VAR - 759024 - 3 REMOTE CONTROL VALVES, W/ DIVERTER, COMPONENTS (MDC) (55) - ELECTRICAL SYSTEMS
35.204.450
2
1

Артикул

Название

Примечание

Количество

1

47131020

BODY

ASSY, Manifold, Incl 2

1шт.

See also Manifold Components in Figure 35.204.450

1шт.

2

5176119

ELECTRO-VALVE,3W - 2p with diode

1шт.

Выбрано товаров: 3
