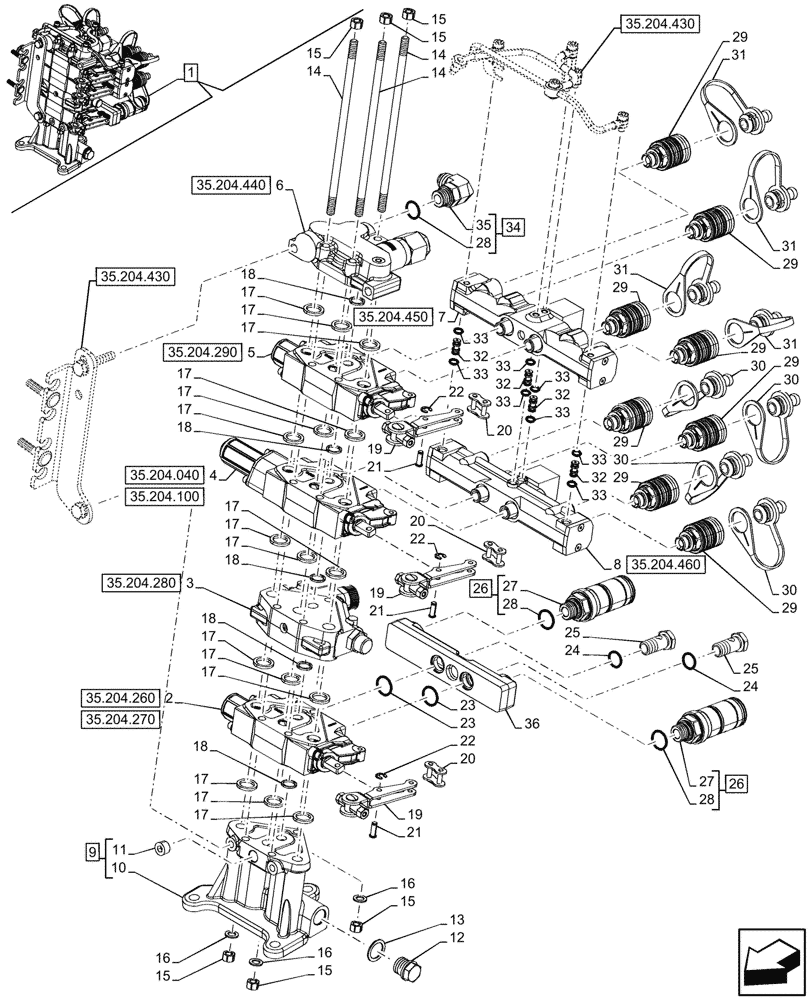

Запчасти Case IH FARMALL 90CL (35.204.420) - VAR - 759024 - 3 REMOTE CONTROL VALVES, W/ DIVERTER, COMPONENTS (MDC) (35) - HYDRAULIC SYSTEMS

1

47937646

DISTRIBUTOR

ASSY, 3 Remotes MDC W/ Diverter, Incl 2 - 36

1шт.

See also 3 Remotes MDC W/ Diverter Valve Components in Figure 35.204.430

1шт.

2

47389209

DISTRIBUTOR

ASSY

1шт.

3

87397107

CONTROL VALVE

Flow, ASSY

1шт.

4

47389172

DISTRIBUTOR

ASSY

1шт.

5

47389207

DISTRIBUTOR

W/Float, ASSY

1шт.

6

87396829

CONTROL VALVE

Cover, ASSY

1шт.

7

47131020

BODY

Manifold, ASSY

1шт.

8

47131021

BODY

Diverter, ASSY

1шт.

9

5176800

FLANGE

ASSY, Incl 10, 11

1шт.

10

5176799

FLANGE

1шт.

11

10269601

PLUG,M16 x 1.5

M16 x 1.5 x11mm

1шт.

12

10305911

PLUG,M22 x 1.5 x 27

1шт.

13

10261850

SEAL,22.3mm ID x 30mm OD x 1.5mm Thk

1шт.

14

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

15

5116857

NUT,3/8" - 24

6шт.

16

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

17

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

15шт.

18

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

5шт.

19

47680228

CONTROL LEVER

3шт.

20

5116896

LINK,19.05mm Pitch

3шт.

21

5172456

PIN,6mm OD x 20mm L

3шт.

22

11087776

CIRCLIP,Ext., M6, BLO

3шт.

23

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

24

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

25

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18 x 1.5 x 38mm

2шт.

26

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 27 (Qty 1), 28 (Qty 1)

2шт.

27

NSS

NOT SOLD SEPARAT

Coupling, Incl in 26

2шт.

28

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

29

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

8шт.

30

5179577

PLUG,24mm, Blu

Blue

4шт.

31

5179578

PLUG,24mm, Brown

Brown

4шт.

32

5190887

HYD CONNECTOR,19.5mm L

4шт.

33

5190853

O-RING,0.103" Thk x 0.206" ID, -107, Cl 5, 70 Duro

8шт.

34

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

ASSY, Incl 28 (Qty 1), 35

1шт.

35

NSS

NOT SOLD SEPARAT

Elbow, Incl in 34

1шт.

36

5185533

HYD CONNECTOR

1шт.
