Запчасти Case IH FARMALL 90CL (35.204.030) - VAR - 759022 - 2 REMOTE CONTROL VALVES, W/O DIVERTER, W/O CAB (35) - HYDRAULIC SYSTEMS

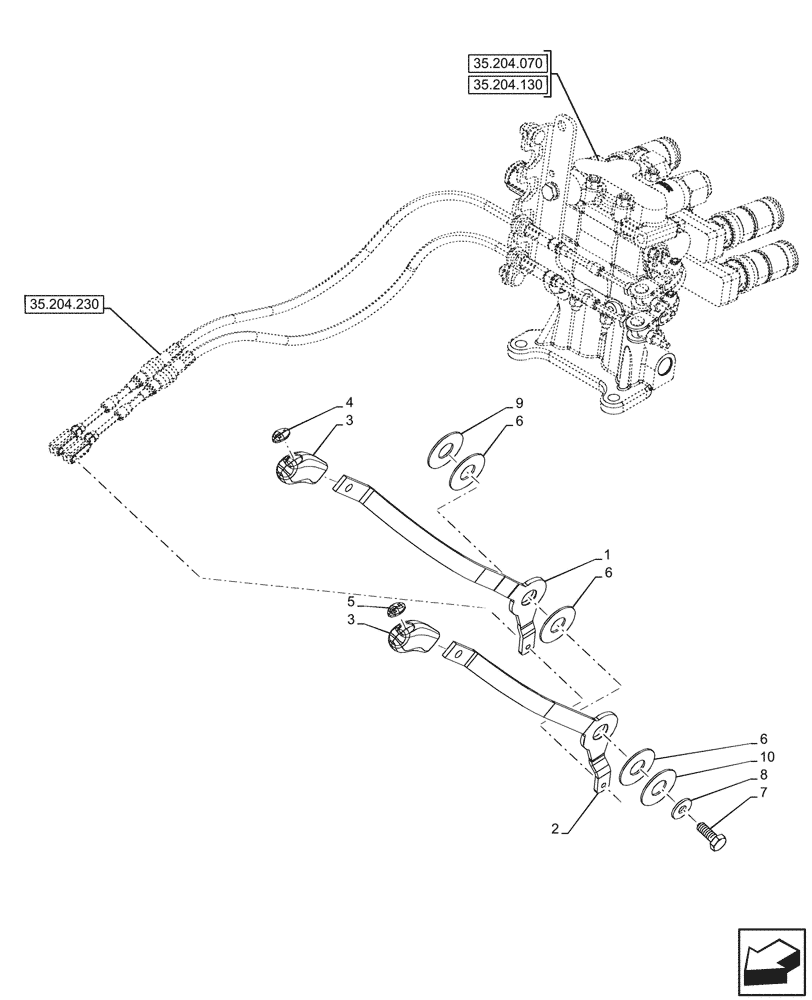

Схема запчастей Case IH FARMALL 90CL - (35.204.030) - VAR - 759022 - 2 REMOTE CONTROL VALVES, W/O DIVERTER, W/O CAB (35) - HYDRAULIC SYSTEMS
35.204.230
3
8
6
7
5
2
4
1
9
6
6
3
10
35.204.130
35.204.070

Артикул

Название

Примечание

Количество

1

47132717

LEVER

1st Command

1шт.

2

47132718

LEVER

2nd Command

1шт.

3

47381094

KNOB,Black

2шт.

4

87698506

DATA PLAQUE

For Blu Remote

1шт.

5

87698505

DATA PLAQUE

For Green Remote

1шт.

6

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

8

13550404

WASHER,10.2mm ID x 20mm OD x 2mm Thk

1шт.

9

87327440

SPACER,21mm ID x 20mm OD x 7mm L

1шт.

10

87306469

WASHER,10.5mm ID x 50mm OD x 2mm Thk

1шт.

Выбрано товаров: 10
