(35.114.070) - VAR - 743536 - 3 POINT HITCH, CONTROL VALVE

Запчасти Case IH FARMALL 90CL (35.114.070) - VAR - 743536 - 3 POINT HITCH, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

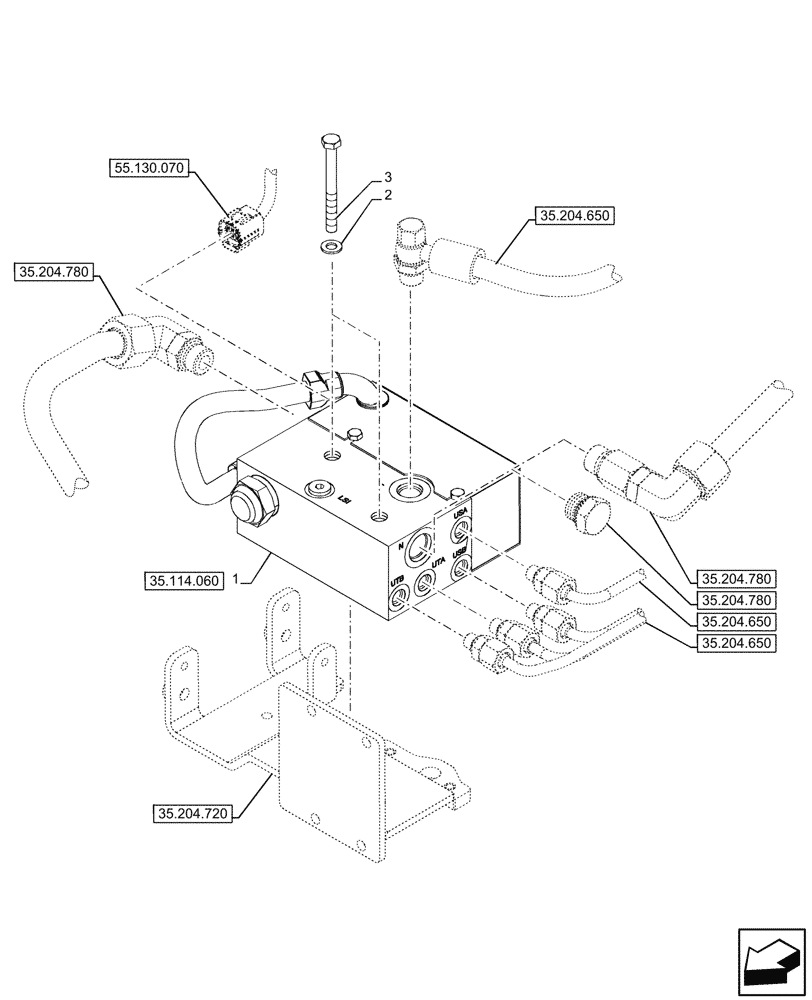

Схема запчастей Case IH FARMALL 90CL - (35.114.070) - VAR - 743536 - 3 POINT HITCH, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.204.720
2
3
1
55.130.070
35.114.060
35.204.650
35.204.650
35.204.650
35.204.780
35.204.780
35.204.780
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48014267

VALVE

ASSY, with Compensator

1шт.

2

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

2шт.

3

614-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 3
